Blustream HEX100ARC-RX - odbiornik - HDBaseT™ Receiver - 100m (4K up to 70m), Bi-directional IR, PoH (PoE), Optical input, ARC, RS-232, 3 x Ethernet Switch



Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

  • audiowizualnych
  • Digital Signage
  • wideokonferencyjnych i telekonferencyjnych
  • sterowania (integracyjnych).



  • Odbiornik HDBaseT do 100m, RS-232, dwukierunkowa podczerwień, dwukierunkowe zasilanie PoH, optyczne wejście audio, ARC, 3 portowy
    przełącznik LAN



Our Platinum Range of HDBaseT™ products offer the very best in performance and flexibility. The HEX100ARC-RX is an industry leading 4K  HDBaseT™ receiver delivering HDMI, Bi-directional IR and PoH (PoE) up to lengths of 100m over a single CAT cable (4K to 70m). The HEX100ARC-RX also provides enhanced features including ARC and Audio breakout, RS-232 pass through and an integrated 3-way Ethernet switch.





  • Receives a HDBaseT™ signal from a compatible HDBaseT™ transmitter from a distance of  up to 100m over single CAT cable
  • Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports 3D signal display
  • Supports ARC (Audio Return Channel) from display via HDMI and Optical digital inputs (when used with compatible Blustream transmitter / matrix)
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Integrated ethernet switch (LAN Serving) when used with Blustream HEX100ARC-RX receiver or platinum matrix solution. HEX100ARC-RX features 3-port Ethernet switch
  • Supports bi-directional RS-232 pass through
  • Supports bi-directional IR from all input and output locations
  • Supports bi-directional PoH (Power over HDBaseT™) to power unit from compatible Blustream Matrix or Transmitter
  • HDCP compliant





Specyfikacja:

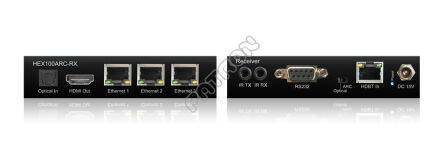

  • Video Input Connectors: 1x HDBaseT™ RJ45 connector
  • Video Output Connectors: 1x HDMI Type A, female
  • Audio Input Connectors:1x Optical (SPDIF)
  • Ethernet Port: 3x RJ45 connector
  • RS-232 serial port: 1x DB-9 female
  • IR Input Ports: 1x 3.5mm stereo jack
  • IR Output Ports: 1x 3.5mm mono jack
  • Mounting kit included
  • Product Dimensions (WxDxH): 115 x 140 x 25mm (with connections)
  • Product Dimensions (WxDxH): 115 x 135 x 25mm (without connections)
  • Product Weight: 0.4kg (excluding accessories)
  • Carton / Box Dimensions (WxDxH): 190 x 160 x 45mm
  • Shipping Weight: 0.55kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power supplied from compatible Blustream Matrix or Transmitter unit

Box Contents

1x HEX100ARC-RX
1x Mounting kit
