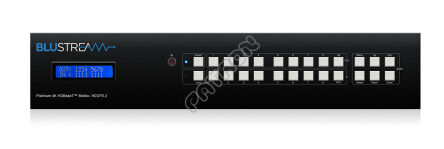

Blustream PLA88ARC-V2  - matryca - 8x8 HDBaseT™ Matrix - 100m (4K up to 70m), Bi-directional IR & RS-232, PoH (PoE), Simultaneous HDBaseT™/HDMI Outputs, Audio Breakout, ARC enabled, HDCP 2.2 compliant



Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

  • audiowizualnych
  • Digital Signage
  • wideokonferencyjnych i telekonferencyjnych
  • sterowania (integracyjnych).
  •  Matryca wideo 8x8 HDBaseT z zasięgiem do 100m (4K do 70m).
  • Dwukierunkowa podczerwień, zasilanie POH, symultaniczne wyjścia HDMI (do wyjść HDBaseT), 2 wejścia HDBaseT, wejścia audio, ARC (audio return channel) kontrola głośności, sterowanie RS-232/TCP/IP



  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Features 8x HDMI inputs which can be independently routed to 8x HDBaseT™ + HDMI outputs
  • Simultaneous HDBaseT™ and HDMI outputs to allow connection to dual displays per zone
  • Inputs 1 & 2 support dual HDBaseT™ & HDMI to enable integration of remote HDMI sources up to 70m distance (4K up to 40m)
  • Up to 24x16 Audio Matrix independently controllable from video:
    • 8x independent analogue L/R audio inputs which can be routed to audio outputs or embedded onto HDBaseT™/HDMI outputs
    • HDMI audio breakout to Coaxial digital and analogue L/R audio outputs with variable pre-amp line level control
    • Supports ARC (Audio Return Channel) via HDMI or Optical digital inputs from compatible HEX100ARC-RX receivers.
  • Extends HDMI up to distance of 100m over single CAT cable
  • Supports 4K UHD video up to 70m (3840x2160 @30Hz 4:4:4, 4096x2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports 3D signal display
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Integrated Ethernet switch (LAN Serving) when used with Blustream HEX100ARC-RX receiver. The HEX100ARC-RX features a 3-port Ethernet switch
  • Web interface module for control and configuration of Matrix
  • Bi-directional RS-232 from all input and output locations (with compatible transmitters & receivers)
  • Bi-directional IR from all input and output locations
  • Supplied with Blustream IR receivers, emitters and RS-232 control cables
  • Control of Matrix via front panel, App, IR, RS-232 and TCP/IP
  • Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ transmitters & receivers
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management
  • HDCP 2.2 compliant
  • 2U Design for 19" rack mount integration - rack mounting kit included
  • Compatible with (receivers):
    • HEX100ARC-RX (for full ARC functionality, 100m at 1080p, 70m at 4K)
    • HEX100HDVGA-RX (for audio breakout at receiver, 100m at 1080p, 70m at 4K) - not HDCP2.2 compliant
    • HEX70ED-RX (for RS232 and IR only, 70m at 1080p, 40m at 4K)
    • HEX70B-RX (for IR control only, 70m at 1080p, 40m at 4K)
    • RX70AMP (for audio within zone, 70m at 1080p, 40m at 4K) - not HDCP2.2 compliant
  • Compatible with (transmitters) - inputs 1 & 2:
    • HEX100ARC-TX-V2 (for Ethernet serving, 100m at 1080p, 70m at 4K)
    • HEX100HDVGA-TX (for HDMI or VGA input, 100m at 1080p, 70m at 4K) - not HDCP2.2 compliant
    • HEX70ED-TX-V2 (for RS232 and IR only, 70m at 1080p, 40m at 4K)
    • HEX70B-TX (for IR control only, 70m at 1080p, 40m at 4K)


Specyfikacja:

  • Video Input Connectors: 8x HDMI Type A, 19-pin, female, locking,  2x HDBaseT™ RJ45 connector
  • Video Output Connectors: 8x HDMI Type A, 19-pin, female, locking,  8x HDBaseT™ RJ45 connector
  • Audio Input Connectors: 8x 3.5mm stereo jack (L/R)
  • Audio Output Connectors: 8x RCA (SPDIF), 8x 3.5mm stereo jack (L/R)
  • RS-232 serial ports: 9x 3-Pin Phoenix connector
  • TCP/IP Control: RJ45, female
  • Ethernet/Network: RJ45, female
  • IR Input ports: 9x 3.5mm stereo jack
  • IR Output ports: 9x 3.5mm mono jack
  • Rack-Mountable: 2U rack height, rack ears included
  • Casing Dimensions (W x H x D): 440mm x 87mm x 361m, without feet
  • Dimensions Including Connections (W x H x D): 440mm x 87mm x 369mm, without feet
  • Shipping Weight: 8.8kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: Internal 100-240v DC


Urządzenie objęte gwarancją, realizowaną w systemie door-to-door przez autoryzowany centralny serwis
