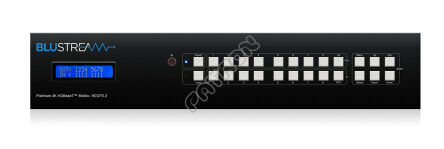

Blustream PLA88L-V2  - matryca - 8x8 HDBaseT Matrix - 70m (4K up to 40m), Bi-directional IR & RS-232, PoH (PoE), Simultaneous HDBaseT/HDMI Outputs, Audio Breakout, HDCP 2.2 compliant



  •  Matryca wideo 8x8 HDBaseT z zasięgiem do 70m (4K do 40m).
  • Dwukierunkowa podczerwień, zasilanie POH, symultaniczne wyjścia HDMI (do wyjść HDBaseT), 2 wejścia, HDBaseT, kontrola głośności, sterowanie RS-
    232/TCP/IP



Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

  • audiowizualnych
  • Digital Signage
  • wideokonferencyjnych i telekonferencyjnych
  • sterowania (integracyjnych).





  • Advanced HDBaseT technology offering uncompressed video and audio with zero latency
  • Features 8x HDMI inputs which can be independently routed to 8x HDBaseT + HDMI outputs
  • Simultaneous HDBaseT and HDMI outputs to allow connection to dual displays per zone
  • Inputs 1  & 2 support Dual HDBaseT & HDMI  to enable integration of remote HDMI sources up to 70m distance (4K up to 40m)
  • Up to 16x16 Audio Matrix independently controllable from video:-
    •  8x independent analogue L/R audio inputs which can be routed to audio outputs or embedded onto HDBaseT/HDMI outputs
    • HDMI audio breakout to Coaxial digital and analogue L/R audio outputs with variable pre-amp line level control
  • Extends HDMI  up to distance of 70m @ 1080P over single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports 3D signal display
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Web interface module for control and configuration of Matrix
  • Bi-directional IR from all input and output locations
  • Bi-directional RS-232 from all input and output locations (with compatible transmitters & receivers)
  • Supplied with Blustream  IR receivers, emitters and RS-232 control cable
  • Control of Matrix via front panel , IR, RS-232 and TCP/IP
  • Supports PoH (Power over HDBaseT) to power compatible HDBaseT transmitters & receivers
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management
  • HDCP 2.2 compliant
  • 2U Design for 19" rack mount integration - rack mounting kit included
  • Compatible with (receivers):
    • HEX100ARC-RX (for AV, IR & RS232 pass through only, 70m at 1080p, 40m at 4K)
    • HEX100HDVGA-RX (for audio breakout at receiver, 70m at 1080p, 40m at 4K) - not HDCP2.2 compliant
    • HEX70ED-RX (RS232 and IR only, 70m at 1080p, 40m at 4K)
    • HEX70B-RX (for IR control only, 70m at 1080p, 40m at 4K)
    • RX70AMP (for audio within zone, 70m at 1080p, 40m at 4K) - not HDCP2.2 compliant
  • Compatible with (transmitters) - inputs 1 & 2:
    • HEX100ARC-TX-V2 (for AV, IR & RS232 pass through only, 70m at 1080p, 40m at 4K)
    • HEX100HDVGA-TX (for HDMI or VGA input, 70m at 1080p, 40m at 4K) - not HDCP2.2 compliant
    • HEX70ED-TX-V2 (RS232 and IR, 70m at 1080p, 40m at 4K)
    • HEX70B-TX (for IR control only, 70m at 1080p, 40m at 4K)




Specyfikacja:

  • Video Input Connectors: 8x HDMI Type A, 19-pin, female, locking,  2x HDBaseT RJ45 connector
  • Video Output Connectors: 8x HDMI Type A, 19-pin, female, locking,  8x HDBaseT RJ45 connector
  • Audio Input Connectors: 8x 3.5mm stereo jack (L/R)
  • Audio Output Connectors: 8x RCA (SPDIF), 8x 3.5mm stereo jack (L/R)
  • RS-232 serial ports: 9x 3-Pin Phoenix connector
  • TCP/IP Control: RJ45, female
  • Ethernet/Network: RJ45, female
  • IR Input ports: 9x 3.5mm stereo jack
  • IR Output ports: 9x 3.5mm mono jack
  • Rack-Mountable: 2 U rack height, rack ears included
  • Casing Dimensions (W x H x D): 440mm x 87mm x 361m, without feet
  • Dimensions Including Connections (W x H x D): 440mm x 87mm x 369mm, without feet
  • Shipping Weight: 8.8kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: Internal 100-240v DC

Box Contents

  • 1 x PLA88L-V2
  • 1 x Remote control
  • 1 x Rack mounting kit
  • 9 x IR emitters
  • 9 x IR receiver
  • 9 x IR control cable - 3.5mm-3.5mm cable
  • 2 x Serial cable - 9-pin RS232 to 3-pin phoenix connector
  • 1 x User manual
  • IEC Power cable/s
