Audac Ateo2D - salony w Katowicach i Toruniu zapraszają - profesjonalne systemy audiowizualne

  • Dodaj recenzję:
  • Producent: AUDAC
  • Dostępność: Skontaktuj się z nami - magazyn dystrybucyjny

**** Autoryzowany dealer produktów AUDAC ****

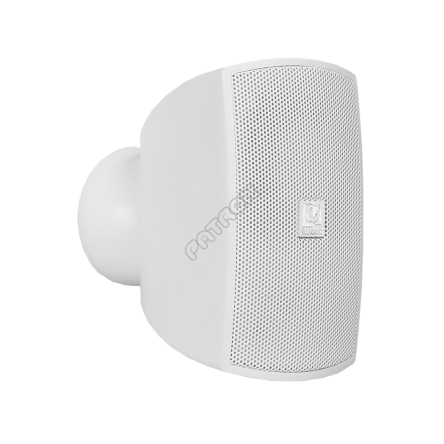

Audac Ateo 2D - głośnik ścienny 10W, 16 Ohm





Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

  • audiowizualnych
  • Digital Signage
  • wideokonferencyjnych i telekonferencyjnych
  • sterowania (integracyjnych).



  • Produkt w magazynie specjalistycznym
  • Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
  • tel. 56 657 57 65
  • tel. 500 227 464



Seria głośników Ateo to głośniki ścienne cechujące się wyjątkowo atrakcyjnym wyglądem, dzięki czemu znajdują zastosowanie w miejscach gdzie elegancja i design odgrywają kluczową rolę. Opatentowany przez Audac uchwyt umożliwia regulację głośnika w pionie i poziomie całkowicie maskując przewody oraz śruby montażowe będąc przy tym bardzo wygodnym w instalacji. Ponadto dzięki bardzo klarownej barwie bywają używane również w instalacjach domowych jak np. kina domowe.
Ateo 2 jest wersją 8 Ohm wyposażoną w przetworniki 2" oraz 1" o łącznej mocy 10 W RMS dostępną w kolorze białym lub czarnym. Dostępna jest również wersja 16 Ohm oznaczona symbolem Ateo2D.



  • Moc RMS: 10 W
  • Impedancja: 16 Ohm
  • Skuteczność: 83 dB
  • Maksymalny poziom SPL: 93 dB
  • Pasmo przenoszenia: 120 - 20 000 Hz
  • Przetworniki: 2" + 1"
  • Waga: 0,39 kg
  • Wymiary: 80x 136 x 115 mm

The ATEO is a series of extraordinary loudspeakers especially designed for fixed install in indoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs. The ATEO 2 is the ultra-compact model of this series which smoothly integrates into any interior like no other loudspeaker. The sound originates from a 2” aluminum cone driver which provides a full-range, warm and detailed sound, with an improved response in the low frequencies due to the ported design. This way, a smooth sound reproduction with clear and crisp sound is guaranteed. The internal self-resetting network provides an optimal overload protection. It features a stunningly designed and elegant looking ABS housing which is fitted with high quality components. What makes this loudspeaker range so exceptional is the specially designed mounting bracket using Clevermount™ technology, making the loudspeakers cabinet flow together with the mounting bracket providing a great ease for installing the loudspeaker in one good-looking entity. The mounting and connection of the loudspeaker is done by mounting the wall-plate to the desired location. The terminal block connector should be fitted to the wires coming from the amplifier and plugged into the counterpart on the speakers’ side. The only next step is clipping the speaker onto the wall plate and tightening it by a quarter turn until its fixed.



Specyfikacja:

Speaker type Full range
Max. Power 20 W
RMS Power 10 W
Impedance 8 Ω (ATEO2)
  16 Ω (ATEO2D)
Sensitivity (1W/1m) 83 dB
Sound Pressure (Max. W/1m) 93 dB
Ingress Protection rating IP40
Connectors 2-pin Euro Terminal Block
Drivers 2” Aluminium full range
Incline angle Left 25°
  Right 25°
  Bottom 25°
  Top 15°
Frequency Response (± 3 dB) 120 Hz - 20 kHz
  Range (-10 dB) 100 Hz - 20 kHz
Dispersion Horizontal 145°
  Vertical 170°
Product features
Dimensions 80 x 136 x 115 mm (W x H x D)
Weight 0.390 kg
Mounting Clevermount™
Construction ABS
Front finish Steel grill
Colours White (RAL9010) (ATEO2/W, ATEO2D/W)
  Black (RAL9005) (ATEO2/B, ATEO2D/B)



Urządzenie objęte gwarancją, realizowaną w systemie door-to-door przez autoryzowany centralny serwis
