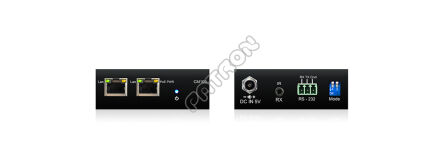

Blustream CM100  -  Moduł do zarządzania przesyłem wideo po przełącznikach sieciowych - IP Multicast Control module for TCP/IP, RS-232 and IR control of Blustream Multicast systems



Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

  • audiowizualnych
  • Digital Signage
  • wideokonferencyjnych i telekonferencyjnych
  • sterowania (integracyjnych).



  • Moduł do zarządzania przesyłem wideo po przełącznikach sieciowych



  • Our UHD Multicast distribution platform allows distribution of HDMI video over a 1GB Network switch. The CM100 Control Module allows simple third party control of the Multicast system using TCP/IP, RS-232 or IR. The system wizard PC configuration program and pre-built Blustream product drivers simplify product installation and negate the need for an understanding of complex network infrastructures.



  • Simple system configuration using the Blustream PC program
  • 2x RJ45 LAN connections to bridge existing network to Multicast video distribution network,  resulting in:
    • Better system performance as network traffic is separated
    • No advanced network setup required
    • Independently configurable Control IP address
    • Allows simplified TCP/IP control of Multicast system
  • RS-232 integration for control of Multicast system
  • IR integration for control of Multicast system
  • PoE (Power over Ethernet) to power Blustream product from PoE switch
  • Local 5V power supply (optional) should Ethernet switch not support PoE
  • 3rd Party drivers available for major home control brands

Specyfikacja:



  • Ethernet port: 2x LAN RJ45 connector (1x PoE support)
  • RS-232 serial port: 1x 3-Pin Phoenix connector
  • IR Input ports: 1x 3.5mm stereo jack
  • Dimensions (W x D x H ): 89mm x 85mm x 23mm
  • Shipping Weight (Kit): 0.4kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

Box Contents

1 x CM100
1 x IR control cable - 3.5mm-3.5mm cable
1 x Serial 3-pin phoenix connector

* Multicast IR remote sold separately (code: IP-REM)
