Blustream HEX100HDVGA-KIT - Odbiornik i nadajnik HDBaseT do 100m, z wejściami VGA i HDMI, dwukierunkową podczerwienią, RS-232 oraz dwukierunkowym zasilanie PoH - HDBaseT™ Extender Set - 100m (4K up to 70m), Switchable HDMI / VGA inputs, Bi-directional IR, Bi-directional PoH (PoE)



Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

  • audiowizualnych
  • Digital Signage
  • wideokonferencyjnych i telekonferencyjnych
  • sterowania (integracyjnych).



  • Odbiornik i nadajnik HDBaseT do 100m, z wejściami VGA i HDMI, dwukierunkową podczerwienią, RS-232 oraz dwukierunkowym zasilanie PoH

  • Our HEX100HDVGA-KIT extender set is an industry leading 4K UHD HDBaseT™ solution that delivers switchable HDMI and VGA inputs. The extender set also transmits Bi-directional IR, RS-232 and PoH (PoE) up to lengths of 100m over a single CAT cable.



  • Extends HDMI and VGA/Audio up to a distance of 100m over single CAT cable
  • Auto signal sensing switches between HDMI and VGA/Audio inputs. Will display last input signal connected
  • Manual switching between inputs using toggle button or RS-232 control on either Transmitter or Receiver
  • Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports industry standard video resolutions from 480i-4K and most industry standard VGA resolutions (check manual for full list of supported VGA resolutions)
  • Supports full 3D signal display
  • Supports CEC bypass (Consumer Electronics Control) - HDMI only
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Supports bi-directional RS-232 pass through
  • Supports bi-directional IR from all input and output locations
  • Supplied with Blustream IR receiver and emitters
  • Supports bi-directional POH (Power over HDBaseT™) to power extenders from either transmitter or receiver end
  • HDCP1.4 compliant







Specyfikacja:

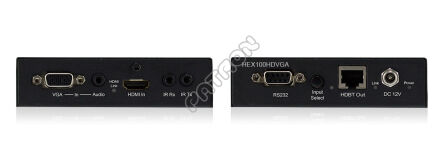

  • HEX100HDVGA-TX
    • Audio Input Connectors: 1x Analogue Left/Right 3.5mm Stereo Jack
    • Video Input Connectors: 1x HDMI Type A & 1x VGA (DB-15)
    • Video Output Connectors: 1x HDBaseT™ RJ45 connector
    • IR Input Ports: 1x 3.5mm stereo jack
    • IR Output Ports: 1x 3.5mm mono jack
    • RS-232 Serial Port: 1x DB9, female
    • Mounting brackets included
  • HEX100HDVGA-RX
    • Audio Output Connectors: 2x Analogue RCA Left/Right & Coaxial digital
    • Video Input Connectors: 1x HDBaseT™ RJ45 connector
    • Video Output Connectors: 1x HDMI Type A
    • IR Input Ports: 1x 3.5mm stereo jack
    • IR Output Ports: 1x 3.5mm mono jack
    • RS-232 Serial Port: 1x DB9, female
    • Mounting brackets included
  • Balun Dimensions (WxDxH): 115mm x 135mm x 30mm (with connections)
  • Balun Dimensions (WxDxH): 115mm x 125mm x 30mm (without connections)
  • Ind. Balun Weight: 0.35kg (excluding accessories)
  • Carton / Box Dimensions (WxDxH): 300mm x 155mm x 90mm
  • Shipping Weight: 1.2kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V / 2A DC, screw type connector



Box Contents

1x HEX100HDVGA-TX
1x HEX100HDVGA-RX
1x 12V / 2A DC power supply
1x IR receiver
1x IR emitter
2x Mounting brackets
1x User manual
