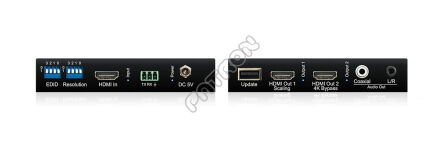

Blustream SC12SP -  Splitter 2x1 HDMI z wbudowanym downscalerem - HDMI 4K HDCP 2.2 compliant splitter with in-built down-scaler, audio breakout and EDID management



Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

  • audiowizualnych
  • Digital Signage
  • wideokonferencyjnych i telekonferencyjnych
  • sterowania (integracyjnych).



  • Splitter 2x1 HDMI z wbudowanym downscalerem



  • The Blustream SC12SP is a HDMI 4K splitter with in-built down-scaler, designed for installations in which a single 4K video source needs to be distributed to multiple displays that support different maximum video resolutions. The SC12SP allows those displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K resolution on the higher-definition display. The SC12SP supports down-scaling of 4K video to various lower resolution video formats, features audio breakout, advanced EDID management and is HDCP 2.2 compliant.
  • Features 1x HDMI input that is replicated to 2x HDMI outputs
  • HDMI output 1 will replicate the native HDMI video input signal
  • HDMI output 1 supports 4K UHD video pass-through (up to 3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4) *
  • HDMI output 2 supports 4K UHD 30Hz video only *
  • HDMI output 2 will down-scale the 4K source signal to the following formats:

     - 1080p @50Hz
     - 1080p @60Hz
     - 720p @60Hz
     - 720p @50Hz
     - 1280x1024 @60Hz
     - 1024x768 @60Hz
     - 1360x768 @60Hz
     - 1440x900 @60Hz
     - 1680x1050 @60Hz

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio breakout to analogue L/R audio and Coaxial digital outputs concurrently
  • Supports CEC bypass (Consumer Electronics Control)
  • Advanced EDID management
  • HDCP 2.2 compliant

* Please note that high frame rate 4K input signals (50fps and 60fps) are not supported with this unit



Specyfikacja:

  • Video Input Connectors: 1x HDMI Type A, 19-pin, female
  • Video Output Connectors: 2x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 1x RCA (SPDIF), 1x 3.5mm stereo jack (L/R)
  • EDID: 4-PIN DIP switch
  • Product upgrade: 1x 3-Pin Phoenix connector & 1x Type A USB female
  • Dimensions (W x H x D): 122mm x 23mm x 135mm
  • Shipping Weight: 0.8kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V/2A DC

Box Contents

1 x SC12SP
1 x 5V/2A DC power supply
1 x Mounting kit
1 x User manual
