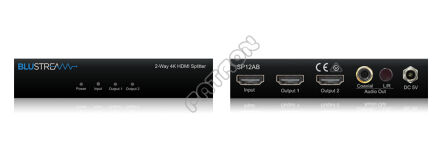

Blustream SP12AB -  Splitter HDMI 1x2, z lokalnym wyjściem audio i zarządzaniem EDID



Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

  • audiowizualnych
  • Digital Signage
  • wideokonferencyjnych i telekonferencyjnych
  • sterowania (integracyjnych).



  • Splitter HDMI 1x2, z lokalnym wyjściem audio i zarządzaniem EDID



  • Our SP12AB 4K UHD HDMI splitter distributes a single HDMI source to two simultaneous outputs. The unit transmits all HDMI resolutions up to and including 4K UHD. The 2-way splitter also includes the advanced features of audio breakout and EDID management.



  • Features 1x HDMI input that is replicated to 2x HDMI outputs
  • Supports 4K UHD video (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports 3D signal display
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio de-embedded to analogue L/R audio and coaxial digital outputs concurrently
  • Advanced EDID management
  • HDCP1.4 compliant



Specyfikacja:



  • Video Input Connectors: 1x HDMI Type A, 19-pin, female
  • Video Output Connectors: 2x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 1x RCA (SPDIF), 1x 3.5mm stereo jack (L/R)
  • EDID Management: 4-pin DIP switch
  • Mounting kit included
  • Product Dimensions (WxDxH): 115 x 70 x 25mm (with connections)
  • Product Dimensions (WxDxH): 115 x 65 x 25mm (without connections)
  • Product Weight: 0.2kg (excluding accessories)
  • Carton / Box Dimensions (WxDxH): 165 x 110 x 90mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V / 1A DC, screw type connector

Box Contents

1x SP12AB
1x 5V / 1A DC power supply
1x Mounting kit
1x User manual
