Audac APM116MK2 - salony w Katowicach i Toruniu zapraszają - profesjonalne systemy audiowizualne

  • Add feedback:
  • Manufacturer: AUDAC
  • Availability: Skontaktuj się z nami - magazyn dystrybucyjny

**** Autoryzowany dealer produktów AUDAC ****

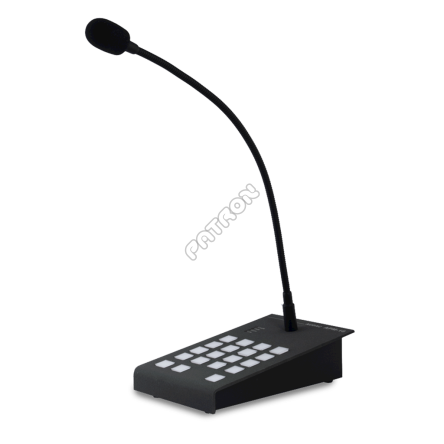

Audac APM116MK2 - pulpit mik. do R2, M2, 16-strefowy



Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

  • audiowizualnych
  • Digital Signage
  • wideokonferencyjnych i telekonferencyjnych
  • sterowania (integracyjnych).



  • Produkt w magazynie dystrybucyjnym
  • Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
  • tel. 56 657 57 65
  • tel. 500 227 464

  • przetwornik pojemnościowy,
  • pasmo przenoszenia 150 Hz-20kHz,
  • impedancja 0,2kOhm,
  • max SPL 120dB,
  • charakterystyka kierunkowości: kardioidalna,
  • zasilanie DC 24V
  • ,wbudowany kompresor-limiter,
  • waga 1,1kg



The APM series are digital paging microphones fitted with a 32 cm gooseneck microphone containing a back electret condenser cell with cardioid pickup pattern. A built-in limiter constantly monitors the input level, guaranteeing a constantly maintained and clear output signal. The status of the reproduced signal is indicated using different LED’s on the microphone’s base, providing an indication to the speaker that the signal is clear and audible in all situations. Each console contains three standard buttons (Except the APM101MK2 which only has PTT) with pre-assigned functions: PTT (Push To Talk), select all and clear all. The other function buttons can be configured to make announcements to particular zones, grouping zones or other functions. (Trigger & switch relay, voice-file announcements, … ) Standard configurations can be made using matrix systems (R2 & M2) while special configurations can be programmed using the APC100 configurator tool in combination with 'Audac system manager' software.



Specyfikacja:

Polar Pattern Cardioid (unidirectional)
Sensitivity (1W/1m) -42 dB ± 3 dB / Pa
Buttons 16 x programmable zone/function
  1 x PTT (push-to-talk)
  1 x select & clear all
Indicators 3 Colours illuminated push button
  Level & status indication LED’s
Internal storage 10 minutes audio or messages spread over max 30 files
Connectors RJ45 (data + Power)
Connection standard TIA/EIA T568B
Microphone Type Back electret condenser
Frequency Response (± 3 dB) 100 Hz - 20 kHz
Power Supply 24 V DC (min. 16V DC)
  Consumption 4.8 W
Microphone Gooseneck length 350 mm
Max. cable length With external PSU 300 m
  Without external PSU 133 m
Product features
Dimensions 120 x 55 x 190 mm (W x H x D)
Weight 1.350 kg
Data protocol RS-485
Audio protocol Analogue
  Digital (configurable)
Colours Grey metallic front panel
Construction Steel
Required cabling Analog UTP CAT5E
  Digital UTP CAT6



Urządzenie objęte gwarancją, realizowaną w systemie door-to-door przez autoryzowany centralny serwis
