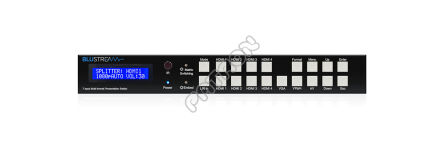

Blustream MFP72 -  Multiformatowy przełącznik prezentacyjny - 7 Input 2 Output Multi-Format Presentation Switch



Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

  • audiowizualnych
  • Digital Signage
  • wideokonferencyjnych i telekonferencyjnych
  • sterowania (integracyjnych).



  • Multiformatowy przełącznik prezentacyjny, wejścia wideo: 4x HDMI Typu A, 1x VGA, 1x Composite, 1x YPbP oraz wyjścia wideo: 2x HDMI Type A.
  • Wejścia audio: 2x analogowe audio 3.5mm stereo jack, 4x analogowe audio RCA (2x L/R)
  • Wyjścia audio: 1x analogowe audio 3.5mm stereo jack, 1x SPDIF Coaxial digital
  • port RS-232 DB-9
  • wejście IR: 1x 3.5mm stereo jack



  • Our MFP72 is a multi-format presentation switcher with in-built video scaling, audio embedding / de-embedding, and advanced EDID management. The MFP72 works in 2 modes, first as a 7 input dual output switcher (7:1x2), alternatively each output can work independently with Output 1 routing the 4x HDMI inputs only (4:1 up to 4K) and Output 2 switching all 7 video/audio inputs (7:1 up to 1080p). With control of the switcher using the front-panel push buttons, IR remote control or RS-232 interface it is an ideal solution for commercial installations.
  • Switcher can function in 2 modes:
    • Splitter mode - both HDMI outputs display the same image from any video input
    • Switcher mode -  HDMI output 1 and 2 are independently controlled
  • HDMI output 1 can view only HDMI inputs 1-4 (up to resolutions of 4K)
  • HDMI output 2 can view all HDMI and analogue video inputs with associated audio (up to 1080p resolution)
  • Built-in video scaling, both up-scaling and down-scaling capabilities
  • Video inputs support industry standard video resolutions including VGA-WUXGA and 480i-4K (including 800x600 @60 & 75Hz)
  • Scaled video output resolutions: 720p, 1080p, 1280x1024, 1024x768, 1360x768, 1440x900, 1680x1050
  • Audio embedding - independent analogue L/R audio input can be embedded to HDMI outputs + Analogue L/R audio and Coaxial digital outputs concurrently (feature available for HDMI output 1 + 2 in 'Split mode', 'Switch mode' = HDMI output 2 only).
  • HDMI audio breakout to Analogue L/R audio and Coaxial digital outputs concurrently (linked to output 2 in 'Switch mode')
  • Volume control - controls volume output of HDMI, Analogue L/R audio and Coaxial digital outputs
  • Supports 3D signal display
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission
  • Supplied with Blustream  IR receiver and IR link cable
  • Control via front panel, IR and RS-232
  • 3rd Party drivers available for all major home control brands
  • HDCP 1.4 compliant



Specyfikacja:

  • Video Input Connectors: 4x HDMI Type A, 1x VGA, 1x Composite, 1x YPbPr
  • Video Output Connectors: 2x HDMI Type A
  • Audio Input Connectors: 2x Analogue audio 3.5mm stereo jack, 4x Analogue audio RCA (2x L/R)
  • Audio Output Connectors: 1x Analogue audio 3.5mm stereo jack, 1x SPDIF Coaxial digital
  • RS-232 serial port: DB-9 connector
  • IR Input ports: 1x 3.5mm stereo jack
  • Casing Dimensions (W x H x D): 323mm x 45mm x 130mm, without feet
  • Dimensions Including Connections (W x H x D): 322mm x 45mm x 140mm
  • Shipping Weight: 1.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V / 2A DC

Box Contents

1x MFP72
1x 5V / 2A DC power supply
1x IR Remote control
1x IR receiver
1x IR control cable - 3.5mm-3.5mm cable (IRCAB)
1x Mounting kit
1x User manual



Urządzenie objęte gwarancją, realizowaną w systemie door-to-door przez autoryzowany centralny serwis
