Blustream MX44VW - salony w Katowicach i Toruniu zapraszają - profesjonalne systemy audiowizualne

  • Add feedback:
  • Manufacturer: BLUSTREAM
  • Availability: Zapytaj sprzedawcę

**** Autoryzowany dealer produktów BLUSTREAM ****

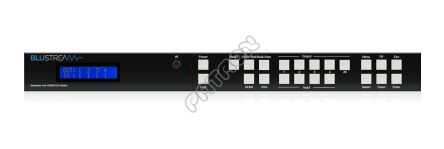

Blustream MX44VW -  Matryca HDMI z funkcjami PiP - 4x4 4K Seamless Switching HDMI/VGA Matrix, with Video Wall and Multi-Viewer feature, IR routing, App, RS-232, IR & TCP/IP Control


Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

  • audiowizualnych
  • Digital Signage
  • wideokonferencyjnych i telekonferencyjnych
  • sterowania (integracyjnych).


  • Matryca HDMI z funkcjami PiP (picture in picture) oraz VW ( video wall).
  • Wejścia wideo 4x HDMI, 4x VGA.
  • Wyjścia wideo 4x HDMI.
  • Wejścia audio 4x analogowe audio 3.5mm (jack) dodatkowo RJ45, RS-232, IR.


  • Our MX44VW 4K HDMI/VGA matrix is a multi-purpose high-speed video processing system. The MX44VW can be configured for 3 different output modes.

    The MX44VW can perform as a 4x4 seamless matrix switcher, as a 2x2, 4x1 or 1x4 video wall solution, and as a quad multi-view presentation system. Inputs can be assigned as either HDMI or VGA with associated L/R analogue audio with control of the switcher via the front-panel push buttons, Blustream Matrix App, IR remote control, RS-232 interface and TCP/IP.

  • Features 3 operational modes:
    • 4x4 Seamless Switching Matrix (HDMI or VGA inputs)
    • Video Wall (2x2, 4x1 or 1x4 configuration)
    • Multi-Viewer mode with preset layouts
  • Features 4x video inputs that can be configured as HDMI video or VGA video with associated L/R analogue audio
  • instantaneous seamless video switching (Matrix and Video Wall modes)
  • Video inputs support industry standard video resolutions including VGA-WUXGA (up to 1920x1200 @60Hz) and 480i-4K (3840x2160 @30Hz 4:4:4, 4096x2160 @24Hz 4:4:4)
  • HDMI output resolution fixed to 1080p @60Hz
  • Supports HDMI 2ch PCM audio only
  • Discreet IR routing
  • Supplied with Blustream IR receivers and emitters
  • Control via front panel, IR, RS-232, TCP/IP and the Blustream Matrix App
  • 3rd party control drivers available for all major home control brands
  • Advanced EDID management
  • HDCP1.4 compliant


  • Video Input Connectors: 4x HDMI Type A, 19-pin, female, locking & 4x VGA
  • Video Output Connectors: 4x HDMI Type A, 19-pin, female, locking
  • Audio Input Connectors: 4x Analogue audio 3.5mm stereo Jack
  • RS-232 serial port: DB-9, female
  • TCP/IP Control: RJ45, female
  • IR Input ports: 5x 3.5mm stereo jack
  • IR Output ports: 4x 3.5mm mono jack
  • Mounting kit included
  • Casing Dimensions (W x H x D): 440mm x 45mm x 180mm
  • Dimensions including connections (W x H x D): 440mm x 44mm x 187mm
  • Shipping Weight: 4.0kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/3A DC


Box Contents

1 x MX44VW matrix
1 x 12V/3A DC power supply
1 x IR remote control
4 x IR emitters
5 x IR receivers
1 x Rack mounting kit
1 x User manual


Sold Separately
1 x HDBaseT™ 100m transmitter (HDBaseT™ source input)
1 x HDBaseT™ 100m receiver (HDBaseT™ output)


Urządzenie objęte gwarancją, realizowaną w systemie door-to-door przez autoryzowany centralny serwis
