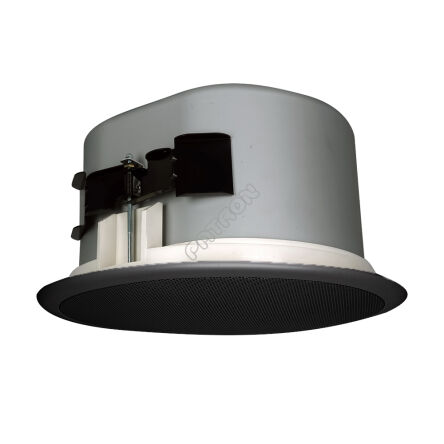

SoundTube CM600i
Patented BroadBeam® waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. One 6.5 inch polypropylene woofer and one 1.0 inch convex aluminum tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum motor-board and heat sink. Rapid-installation, blind-mount, fixed-wing mounting mechanism with constant-tension design affixing to ceiling thicknesses ranging from 0.25 inch (6.4 mm) to 1.69 inch (42.9 mm). Easy-access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position. Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting. Steel grille with protective powder-coated finish for lasting durability. Average sensitivity of 88 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved. Included accessories: Tile bridge, Euroblock connector, paint mask, conduit plate.
Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:
audiowizualnych
Digital Signage
wideokonferencyjnych i telekonferencyjnych
sterowania (integracyjnych).
Produkt w magazynie dystrybucyjnym
Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
tel. 56 657 57 65
tel. 500 227 464
Specyfikacja:
| Nominal Impedance | 8 ohm |
| Impedance (min) | 5.3 ohm |
| Sensitivity dB @ 2.83V/1M | 88.0dB |
| Sensitivity dB @ 1W/1M (2) | 88.0dB |
| Frequency Response (± 3 dB) | 69 Hz - 22 kHz |
| Frequency Response (±10 dB) | 52 Hz - 22 kHz |
| Max. Program Power | 180W |
| Max. Continuous Power RMS | 90W |
| Max. Power SPL @ 1 M | 107.5dB |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4 (Average 100 Hz - 10 kHz) 5.4 (2 kHz) |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.6dB (Average 100 Hz - 10 kHz) 7.3dB (2 kHz) |
| Tap Selector | 6 Position rotary switch with transformer bypass |
| 70.7 Volt Transformer Taps | 33w / 103.0dB |
| 100 Volt Transformer Taps (dB) | 33w / 103.0dB |
| 25 Volt Transformer Taps (dB) | 5w / 95.0dB |
| Transformer Options | 25 / 70.7 / 100 Volt 8 Ohm direct |
| Transducer - Low Frequency Driver | 6.5" Polypropylene Cone with Butyl Rubber Surround |
| Transducer - High Frequency Driver | 1" Convex Titanium Tweeter w/ Waveguide |
| Network Type: Low Pass | 12dB per octave, 2nd order |
| Network Type: High Pass | 12dB per octave, 2nd order |
| Angle | 135 |
| Coverage Angle (-6 dB @ 2 kHz) | 135 |
| Colors | Black or white |
| Inputs | 4 Pin, 5.08 mm Euroblock for individual or daisy chain connection |
| Backcan Diameter | 296.7 mm / 11.7 in |
| Backcan Height | 201.7 mm / 7.9 in |
| Visible Diameter | 374.9 mm / 14.8 in |
| Visible Height | 27.4 mm / 1.1 in |
| Mounting Hole Diameter | 323.9 mm / 12.8 in |
| Weight | 4.6 kg / 10.1 lb |
| Shipping Weight | 15.5 kg / 34.2 lb |
| Accessories Optional | Pre-Construction Bracket (AC-CM8-PCB), |
| Packaging | 2 per box |
| Regulatory - UL | Approved UL1480A & UL2043 |
| Regulatory - CE | Approved |
| Regulatory - IP | not planned |
