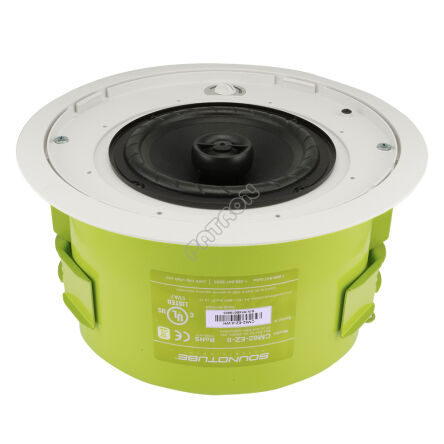

SoundTube CM62-EZ-2
The next generation version of the CM62-EZ with improved and additional features. One 6.5 in (165 mm) treated fiber woofer with cloth surround and one 1.0 in (25.4 mm) silk dome tweeter. Easy-access, six-position tap switch for 25/70.7/100-volt and 16 ohm transformer bypass position allows for easy ordering, stocking and installation. Reduced amplification costs with maximum efficiency including 90 dB sensitivity and 16-ohm impedance. Superior voice intelligibility with a 10 kHz coverage angle of 80° (Independently verified). Incorporates a painted steel grille for lasting durability. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. EN54-24 listed. Adaptable to material thicknesses ranging from 0.04 in (0.9 mm) to 1.60 in (40.6 mm). UL 1480 (UEAY) and 2043, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved. Included accessories: Tile bridge, UL listed 0.5-inch flex conduit clamp, paint shield and two wire nuts.
Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:
audiowizualnych
Digital Signage
wideokonferencyjnych i telekonferencyjnych
sterowania (integracyjnych).
Produkt w magazynie dystrybucyjnym
Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
tel. 56 657 57 65
tel. 500 227 464
Specyfikacja:
| Nominal Impedance | 16 ohm |
| Impedance (min) | 17.9 ohm |
| Sensitivity dB @ 2.83V/1M | 90.0dB |
| Sensitivity dB @ 1W/1M (2) | 90.0dB |
| Frequency Response (± 3 dB) | 125 Hz - 20 kHz |
| Frequency Response (±10 dB) | 65 Hz - 22 kHz |
| Max. Program Power | 100W |
| Max. Continuous Power RMS | 50W |
| Max. Power SPL @ 1 M | 107.0dB |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 5.1 (Average 100 Hz - 10 kHz) 5 (2 kHz) |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 6.2dB (Average 100 Hz - 10 kHz) 7.0dB (2 kHz) |
| Tap Selector | 6 Position rotary switch with transformer bypass |
| 70.7 Volt Transformer Taps | 32w / 105.0dB |
| 100 Volt Transformer Taps (dB) | 32w / 105.0dB |
| 25 Volt Transformer Taps (dB) | 4w / 96.0dB |
| Transformer Options | 25 / 70.7 / 100 Volt option with a 16 Ohm direct |
| Transducer - Low Frequency Driver | 6.5" Treated Fiber Cone w/ Cloth Surround |
| Transducer - High Frequency Driver | 1″ Silk Dome |
| Network Type: Low Pass | 12dB per octave, 2nd order |
| Network Type: High Pass | 6dB per octave, 1st order |
| Angle | 135 |
| Coverage Angle (-6 dB @ 2 kHz) | 135 |
| Colors | Black / White / Custom |
| Connections | 4 position ceramic terminal strip |
| Inputs | 4 position ceramic terminal connector |
| Backcan Diameter | 245.6 mm / 9.67 in |
| Backcan Height | 146.1 mm / 5.75 in |
| Visible Diameter | 298.5 mm / 11.75 in |
| Visible Height | 8.6 mm / 0.34 in |
| Mounting Hole Diameter | 266.7 mm / 10.5 in |
| Weight | 3.6 kg / 8 lbs |
| Shipping Weight | 4.1 kg / 9 lbs |
| Accessories Optional | AC-CMEZ6/8-PCB, |
| Packaging | 1 per box |
| Regulatory - UL | Approved UL1480A & UL2043 |
| Regulatory - CE | Approved |
| Regulatory - RoHS | approved |
| Regulatory - IP | not planned |
