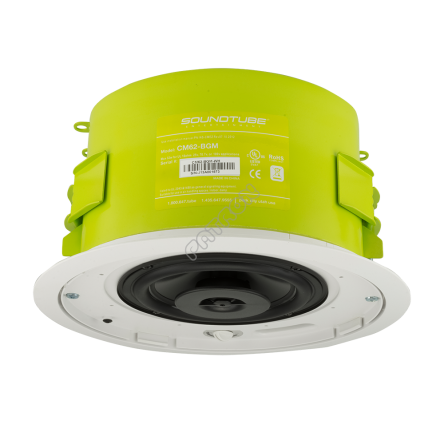

SoundTube CM82 BGM  - 8.0″ COAXIAL IN-CEILING BACKGROUND MUSIC SPEAKER

One 8.0 inch (203 mm) polypropylene woofer with butyl rubber surround and one 1.0 inch (25 mm) silk dome tweeter. BroadBeam Ring™ technology for mid-range clarity and smooth off axis performance. Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation. Tuned port on baffle for added musicality and bass response down to 55 Hz (-10 dB). Reduced amplification costs and maxi¬mum efficiency of 86.0 dB sensitivity, 16 ohm impedance. Incorporates a painted steel grille for lasting durability. Adaptable to material thicknesses ranging from 0.035 inch (0.9 mm) to 1.6 inch (40.6 mm). UL 1480 and 2043 listed. Included accessories: Tile bridge, UL listed 0.5-inch conduit clamp, paint shield.

Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

• audiowizualnych
• Digital Signage
• wideokonferencyjnych i telekonferencyjnych
• sterowania (integracyjnych).

• Produkt w magazynie dystrybucyjnym
• Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
• tel. 56 657 57 65
• tel. 500 227 464

• Nominal Impedance	16 ohm
  Impedance (min)	16 ohm
  Sensitivity dB @ 2.83V/1M	81.4dB
  Sensitivity dB @ 1W/1M (2)	84.5dB
  Frequency Response (± 3 dB)	56 Hz - 20 kHz
  Frequency Response (±10 dB)	45 Hz - 22kHz
  Max. Program Power	128W
  Max. Continuous Power RMS	64W
  Max. Power SPL @ 1 M	102.5dB
  Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)	7.6 (Average 100 Hz - 10 kHz) 8.2 (2 kHz)
  Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)	6.9dB (Average 100 Hz - 10 kHz) 6.6dB (2 kHz)
  Tap Selector	6 Position rotary switch with transformer bypass
  70.7 Volt Transformer Taps	64w / 102.5dB
  100 Volt Transformer Taps (dB)	64w / 102.5dB
  25 Volt Transformer Taps (dB)	8w / 93.5dB
  Transducer - Low Frequency Driver	8" Polypropylene Cone w/ Butyl Rubber Surround
  Transducer - High Frequency Driver	1″ Silk dome w/ BroadBeam Ring™
  Network Type: Low Pass	12dB per octave, 2nd order
  Network Type: High Pass	12dB per octave, 2nd order
  Angle	110
  Coverage Angle (-6 dB @ 2 kHz)	110
  Colors	Black or white
  Inputs	4 position ceramic terminal connector
  Backcan Diameter	245.6 mm / 9.7 in
  Backcan Height	203.2 mm / 8.0 in
  Visible Diameter	298.5 mm / 11.8 in
  Visible Height	8.6 mm / 0.34 in
  Mounting Hole Diameter	266.7 mm / 10.5 in
  Weight	4.1 kg / 9.0 lb
  Shipping Weight	4.5 kg / 9.9 lb
  Accessories Optional	AC-CM6-8EZ-PCB
  Packaging	1 per box
  Regulatory - UL	Approved UL1480A & UL2043
  Regulatory - CE	Approved
  Regulatory - RoHS	approved
  Regulatory - IP	not planned
