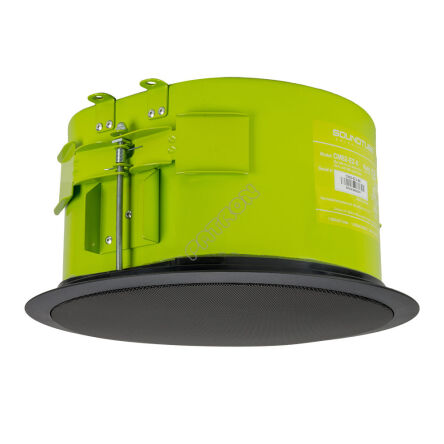

SoundTube CM82EZ 2- 8.0″ COAXIAL IN-CEILING SPEAKER
The next generation version of the CM82-EZ with improved and additional features. One 8.0 inch (203 mm) polypropylene woofer with butyl rubber surround and one 1.0 inch (25.4 mm) silk dome tweeter. Easy-access six-position tap switch for 25/70.7/100-volt and 16-ohm transformer bypass settings allows for easy ordering, stocking and installation. Reduced amplification costs and maximum efficiency 89.0 dB sensitivity, 16 ohm impedance and a sealed enclosure. Superior voice intelligibility with an average coverage angle of 95° (2–10 kHz, independently verified). Cost-effective 16 ohm settings allows for the use of multiples of two, four, or six speakers in a system using a standard amplifier without a transformer. Incorporates a painted steel grille with rust inhibitor for lasting durability. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Adaptable to ceiling thicknesses ranging from 0.04 inch (0.9 mm) to 1.60 inch (40.6 mm). UL 1480 (UEAY) and 2043, cUL, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved. Included accessories: tile bridge, UL-listed 0.5-inch conduit clamp, paint shield and two wire nuts.
Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:
audiowizualnych
Digital Signage
wideokonferencyjnych i telekonferencyjnych
sterowania (integracyjnych).
Produkt w magazynie dystrybucyjnym
Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
tel. 56 657 57 65
tel. 500 227 464
Specyfikacja:
| Nominal Impedance | 16 ohm |
| Impedance (min) | 17.2 ohm |
| Sensitivity dB @ 2.83V/1M | 86.0dB |
| Sensitivity dB @ 1W/1M (2) | 89.0dB |
| Frequency Response (± 3 dB) | 92 Hz - 18 kHz |
| Frequency Response (±10 dB) | 65 Hz - 22 kHz |
| Max. Program Power | 128W |
| Max. Continuous Power RMS | 64W |
| Max. Power SPL @ 1 M | 107.0dB |
| Max. SPL @ 3dB distortion | 20W |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 5.4 (Average 100 Hz - 10 kHz) 7.2 (2 kHz) |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.5dB (Average 100 Hz - 10 kHz) 8.6 dB (2 kHz) |
| Tap Selector | 6 Position rotary switch with transformer bypass |
| 70.7 Volt Transformer Taps | 64w / 107.0dB |
| 100 Volt Transformer Taps (dB) | 64w / 107.0dB |
| 25 Volt Transformer Taps (dB) | 8w / 98.0dB |
| Transformer Options | 25 / 70.7 / 100 Volt 16 Ohm direct |
| Transducer - Low Frequency Driver | 8" Polypropylene Cone w/ Butyl Rubber Surround |
| Transducer - High Frequency Driver | 1″ Silk Dome |
| Network Type: Low Pass | 6dB per octave, 1st order |
| Network Type: High Pass | 6dB per octave, 1st order |
| Angle | 105 |
| Coverage Angle (-6 dB @ 2 kHz) | 105 |
| Colors | Black / White / Custom |
| Connections | 4 position ceramic terminal strip |
| Inputs | 4 position ceramic terminal connector |
| Backcan Diameter | 245.6 mm / 9.67 in |
| Backcan Height | 146.1 mm / 5.75 in |
| Visible Diameter | 298.5 mm / 11.75 in |
| Visible Height | 8.6 mm / 0.34 in |
| Mounting Hole Diameter | 266.7 mm / 10.5 in |
| Weight | 4.1 kg / 9 lbs |
| Shipping Weight | 4.5 kg / 10 lbs |
| Accessories Optional | AC-CMEZ6/8-PCB, |
| Packaging | 1 per box |
| Regulatory - UL | Approved UL1480A & UL2043 |
| Regulatory - CE | Approved |
| Regulatory - RoHS | approved |
| Regulatory - IP | not planned |
