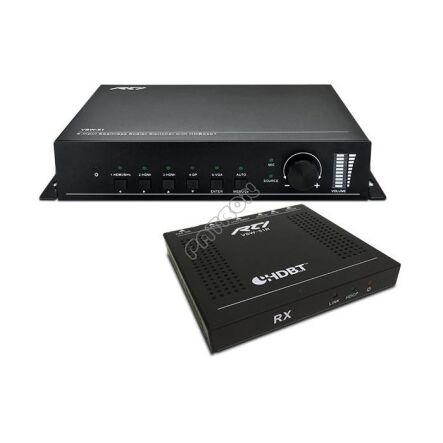

RTI VSS-51 - (VSW-51 & VSW-51R) 5x1 HDBaseT Presentation Scaler Switcher Kit

Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

audiowizualnych
Digital Signage
wideokonferencyjnych i telekonferencyjnych
sterowania (integracyjnych).

Produkt w magazynie specjalistycznym
Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
tel. 56 657 57 65
tel. 500 227 464

Made up of the VSW-51 5x1 presentation scaler switcher and the VSW-51R HDBaseT receiver, the VSS-51 Presentation Scaler Switcher Kit is the perfect AV solution in conference rooms, classrooms and lecture halls. The VSW-51 combines seamless switching with advanced scaling to provide excellent picture quality regardless of the source. The compact switcher comes with five video inputs, including three HDMI, one display port and one VGA port. Video is output through an HDMI port and a mirrored HDBaseT port for delivery of HD video to an additional display via the included VSW-51R HDBaseT receiver. A Mic input is also available with support for condensor and dynamic microphones, and line level audio.

Key Features:

Includes VWS-51 High-definition, multi-format 5x1 presentation scaler switcher.
Includes VWS-51R HDBaseT Receiver.
Built-in scaler upscales input resolution to up to 1920 x 1200 output resolution.
Auto-switching, Quick Switch technology.
HDMI output.
Mirrored HDBaseT output enables long-distance wiring over CAT cable
Supports HDBaseT 4-Play with transmission of video, audio, power (PoH), and control signals (IR / RS-232) over a single Cat-5/6 cable.
Provides signal switching of up to 5 video sources.
Mirrored HDMI and HDBaseT output 230ft (70m) for Full HD video.
Supports HDMI, Display Port and VGA sources.
Balanced/unbalanced adjustable microphone input with 48V phantom power for condenser, dynamic or wireless microphones.
Controllable via front control panel, RS-232 or web interface.

Specyfikacja:

VSW-51 Presentation Scaler Switcher

Power Supply	+24 VDC, 2.71A
Mounting	Surface / wall mount or free standing
Digital Video Input	One HDMI/MHL, Two HDMI, One Display Port
Analog Video Input	One VGA, female 15-pin (Supports YPbPr and Composite Video using supplied adapter cable)
Video Output (mirrored)	One HDMI One HDBaseT with PoH (RJ45), 1920x1200≤229ft (70m)
Output resolution range	1920x1200, 1920x1080, 1600x1200, 1600x900, 1360x768, 1280x800, 1280x720, 1024x768
Compliance	HDMI 1.4, HDCP 2.2
Audio Line Input	Two Analog Stereo for VGA and Display Port (3.5mm jack)
Microphone Input	One balanced/unbalanced (3-pin Phoenix Connector), switchable Line / 48V Phantom Power
Audio Input Impedance	10kOhms
Audio Output	One Dual-Mono Analog Audio(5-pin Phoenix Connector)
Audio Output Impedance	70 Ohms
Frequency Response	20Hz to 20KHz
Stereo Channel Separation	>80dB @ 1kHz
Front Panel Control	6 Buttons, 1 Volume Knob, Bargraph and Status LED
RS232	One, Bi-directional (3-pin Phoenix) for VSS-51 or remote device through HDBaseT
IR Control of local or remote device	One, 3.5mm jack (IR IN) to IR OUT or HDBaseT to IR OUT on HDBaseT Receiver
USB	Type-A for Firmware Update
Ethernet Port	One, 10/100Base-T (RJ45)
Operating Temperature	C -10 to +40 degrees F +14 to +104 degrees
Operating Humidity	5% to 95% Non-condensing
Dimensions WxHxD	8.66” (220mm) x 1.73” (44mm) x 2.85” (172.5mm)
Weight	1.76lb (800g)
Warranty	Three Years (Parts & Labor)

VSW-51R HDBaseT Receiver (included)

Power Supply	via PoH (Power over HDBaseT)
Mounting	Surface / wall mount or free standing
Input	One HDBaseT with PoH (RJ45)
Output	One HDMI
Compliance	HDMI 1.4, HDCP 2.2
Control Ports	One RS-232 Bi-driectional (3-pin Phoenix) One IR in (3.5 mm jack), one IR out (3.5 mm jack)

All features and specifications subject to change without notice.
