SoundTube CM82 EZ II - salony w Katowicach i Toruniu zapraszają - profesjonalne systemy audiowizualne

  • Dodaj recenzję:
  • Producent: SOUNDTUBE
  • Dostępność: Skontaktuj się z nami - magazyn dystrybucyjny

**** Autoryzowany dealer produktów SOUNDTUBE ****

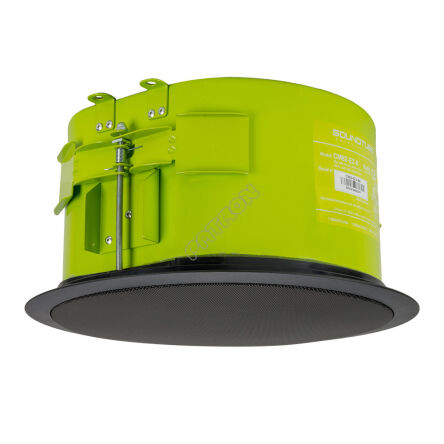

SoundTube CM82EZ 2- 8.0″ COAXIAL IN-CEILING SPEAKER

The next generation version of the CM82-EZ with improved and additional features. One 8.0 inch (203 mm) polypropylene woofer with butyl rubber surround and one 1.0 inch (25.4 mm) silk dome tweeter. Easy-access six-position tap switch for 25/70.7/100-volt and 16-ohm transformer bypass settings allows for easy ordering, stocking and installation. Reduced amplification costs and maximum efficiency 89.0 dB sensitivity, 16 ohm impedance and a sealed enclosure. Superior voice intelligibility with an average coverage angle of 95° (2–10 kHz, independently verified). Cost-effective 16 ohm settings allows for the use of multiples of two, four, or six speakers in a system using a standard amplifier without a transformer. Incorporates a painted steel grille with rust inhibitor for lasting durability. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Adaptable to ceiling thicknesses ranging from 0.04 inch (0.9 mm) to 1.60 inch (40.6 mm). UL 1480 (UEAY) and 2043, cUL, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved. Included accessories: tile bridge, UL-listed 0.5-inch conduit clamp, paint shield and two wire nuts.



Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

audiowizualnych

Digital Signage

wideokonferencyjnych i telekonferencyjnych

sterowania (integracyjnych).



Produkt w magazynie dystrybucyjnym

Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności

tel. 56 657 57 65

tel. 500 227 464



Specyfikacja:

Nominal Impedance 16 ohm
Impedance (min) 17.2 ohm
Sensitivity dB @ 2.83V/1M 86.0dB
Sensitivity dB @ 1W/1M (2) 89.0dB
Frequency Response (± 3 dB) 92 Hz - 18 kHz
Frequency Response (±10 dB) 65 Hz - 22 kHz
Max. Program Power 128W
Max. Continuous Power RMS 64W
Max. Power SPL @ 1 M 107.0dB
Max. SPL @ 3dB distortion 20W
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 5.4 (Average 100 Hz - 10 kHz) 7.2 (2 kHz)
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 5.5dB (Average 100 Hz - 10 kHz) 8.6 dB (2 kHz)
Tap Selector 6 Position rotary switch with transformer bypass
70.7 Volt Transformer Taps 64w / 107.0dB
100 Volt Transformer Taps (dB) 64w / 107.0dB
25 Volt Transformer Taps (dB) 8w / 98.0dB
Transformer Options 25 / 70.7 / 100 Volt 16 Ohm direct
Transducer - Low Frequency Driver 8" Polypropylene Cone w/ Butyl Rubber Surround
Transducer - High Frequency Driver 1″ Silk Dome
Network Type: Low Pass 6dB per octave, 1st order
Network Type: High Pass 6dB per octave, 1st order
Angle 105
Coverage Angle (-6 dB @ 2 kHz) 105
Colors Black / White / Custom
Connections 4 position ceramic terminal strip
Inputs 4 position ceramic terminal connector
Backcan Diameter 245.6 mm / 9.67 in
Backcan Height 146.1 mm / 5.75 in
Visible Diameter 298.5 mm / 11.75 in
Visible Height 8.6 mm / 0.34 in
Mounting Hole Diameter 266.7 mm / 10.5 in
Weight 4.1 kg / 9 lbs
Shipping Weight 4.5 kg / 10 lbs
Accessories Optional AC-CMEZ6/8-PCB, AC-CM-EZ-JBOX
Packaging 1 per box
Regulatory - UL Approved UL1480A & UL2043
Regulatory - CE Approved
Regulatory - RoHS approved
Regulatory - IP not planned
