RTI Miravue VIP-1 - salony w Katowicach i Toruniu zapraszają - kupuj u najlepszych!

Dodaj recenzję:

Producent: RTI
Dostępność: Skontaktuj się z nami - magazyn dystrybucyjny

**** Autoryzowany dealer produktów RTI ****

RTI Miravue VIP-1 - provides AV distribution over wired and wireless Ethernet networking in the connected home or office.

Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

audiowizualnych
Digital Signage
wideokonferencyjnych i telekonferencyjnych
sterowania (integracyjnych).

Produkt w magazynie specjalistycznym
Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
tel. 56 657 57 65
tel. 500 227 464

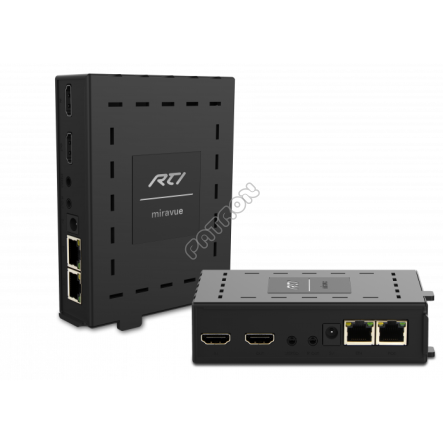

The Miravue VIP-1 provides AV distribution over wired and wireless Ethernet networking in the connected home or office. The VIP-1 encodes H.264 video up to its highest supported resolution (1080p) along with audio (Dolby 5.1). The result is a high quality video output signal with low network bandwidth requirements. For the ultimate in flexibility, the VIP-1 can be installed as a transmitter or receiver, and acts as an extension of the RTI control system, delivering IR and RS-232 control to devices.

* For the best performance:

The VIP-1 should be installed as a transmitter or a receiver. NOTE: While the VIP-1 may be installed as a transceiver (simultaneously transmitting and receiving video), this implementation should be tested with the devices and network equipment being used.
Wireless implementations should utilize a separate wireless network, and be limited to one or two Miravue VIP-1’s set to Unicast mode.
Systems requiring more than 6 VIP-1’s should use a managed network switch.

Key Features:

Miravue VIP-1 can be installed as a transmitter or a receiver.*
Supports video distribution via wired and wireless Ethernet.*
Supports HDMI/HDCP 1.x and 2.x video sources and displays (H.264).
Integrates network video streams (e.g., IP Cameras).
Built-in scaler matches the display’s maximum resolution.
Forwards IR and RS-232 commands from an RTI control system.
Automatically provides stereo downmix with lipsync adjust for distributed audio systems.

Specyfikacja:

Power Supply	5V, 2.4A or via PoE 802.3af
Mountable	Surface / Wall mount / Rack mount (w/ RMK-3 or RMK-12)
Dimensions HxWxD	5in(127mm) x 1.27in(32mm) x 3.8in(97mm)
Weight	6.03oz (180g)
Operating Temperature	0 to +40&#176C / +32 to +104&#176F
Operating Humidity	5% to 90% Non-condensing
Video Input	One HDMI
Video Output	One HDMI
Ethernet Ports	Two, 10/100Base-T, RJ45 (1 PoE, 1 Ethernet)
Wireless Ethernet	2.4GHz and 5Ghz a/g/b/n
Audio Output	One, Stereo Audio, 3.5mm
Control Signal Output	One, IR, 3.5mm jack, One, RS-232, 3.5mm 3pos, TCP/IP, RJ45
Compliance	HDMI / HDCP 1.x and 2.x
Max. Bandwidth	10.2Gbps
Compliance	HDCP 1.4 and HDCP 2.2
Supported Video Resolutions	480i, 480p, 576i, 576p, 720p@50/60Hz, 1080i@25/30Hz, 1080p@24/25/30/50/60Hz Video Codecs DivX, XviD, H.264 BP/MP/HP, VC-1 SP/MP/AP, MPEG-1/2, MPEG-4 SP/ASP, H.263P3, VP8, MVC, Theora, AVS, RV-8/9/10
Audio Formats	Stereo, Dolby Digital 5.1
Control Options	(VIP-1) IR, RS232, TCP/IP, CEC with OSD
Warranty	Three Years (Parts & Labor)

All features and specifications subject to change without notice.
