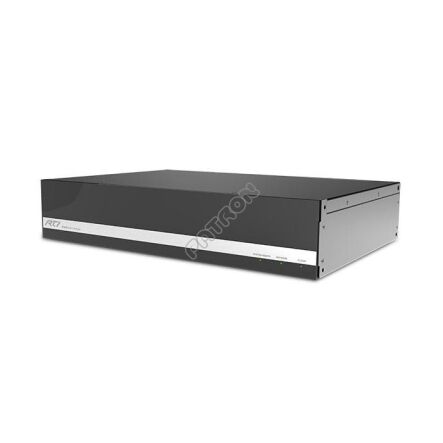

RTI VHD-8x - 8x10 HDBaseT Video Matrix Switcher

Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

A great way to share video content from blu-ray players, set top boxes, PCs or games consoles around the home or corporate building, avoiding the need to purchase multiple bits of hardware that sit idle for long periods of time. The perfect blend of simplicity and sophistication, we have worked alongside installers to create matrices that are simple to set up, include user friendly controls and enables continuous support off-site using our unique cloud monitoring portal.
Featuring 8 HDMI inputs and 8 HDBaseT Class B outputs plus 2 independant HDMI outputs and additional HDCP 2.2 support for 4K/Ultra HD video. Utilizing CEC control allows any supported TV to send key presses from the original TV remote through the HDBaseT link and the matrix will route these messages to the connected source devices.

The VHD-8x includes:

VHD-8x Matrix Switcher
8x VHR-1x HDBaseT Class B Receivers
8x Infrared Blaster Cable Pack
Rack Ears
Power Cord
Installation Guide
Important Note: Available in select markets. Please contact your local RTI representative for availability.

Key Features:

8 HDMI inputs and 8 HDBaseT Class B outputs plus 2 HDMI outputs (Independent or mirrored).
Extends 1080p up to 230 feet (70 meters) and 4K up to 131 feet (40 meters) over a single Cat5e cable or greater.
Supports 4K@60Hz 4:2:0 and 1080p@60Hz, 3D.
HDCP 2.2 compliant.
EDID auto-discovery and data reporting.
IP Control via control system.
HDMI-CEC bi-directional control.
Bi-directional IR control.
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission.
Supports PoH (Power over HDBaseT) to power HDBaseT receivers.
Rack mountable.
Web based management and remote monitoring support.
Kit Includes: VHD-8x Chassis | 8x VHR-1x HDBaseT Class B Receivers | 8x Infrared Blaster Cable Pack | Rack Ears | Power Cord | Installation Guide.

Specyfikacja:

AC Input Voltage	IEC C14 Inlet - 100-240VAC 4.0/2.0A 50/60Hz
Power Consumption	Max 2Amps @ 240V
Mounting	Rack mount or free standing
Dimensions HxWxD	3.5in(89mm) x 16.9in(430mm) x 11.6in(295mm) (2U high, full rack width)
Weight	13.5lbs (6.10kg)
Operating Temperature	0 to +35°C / +32 to +95°F
Operating Humidity	5% to 90% Non-condensing
Video Inputs	Eight HDMI
Video Outputs	Two HDMI, Eight HDBaseT Class B (PoH) (RJ45). Eight VHR-1x PoH Receivers included
Resolution Range	Up to 4K @60Hz 4:2:0
HDBaseT Transmission Distance	1080P@60Hz ≤ 230ft (70m) 4K@30Hz ≤ 131ft (40m)
Color Supported	4K: 8bit, 1080p: 12bit
TMDS Clock Speed	340Mhz
Max. Bandwidth	10.2Gbps
Compliance	HDCP 1.4, HDCP 2.2
IR Control	Eight IR In, Ten IR Out, One Global IR In/Out, 3.5mm jacks
IP Control	One, 10/100Base-T, RJ45 Connection
CEC Control	Full
Monitoring	Real Time Remote Monitoring Portal
Warranty	Three Years (Parts & Labor)

All features and specifications subject to change without notice.
