RTI VHR-1x - salony w Katowicach i Toruniu zapraszają - kupuj u najlepszych!
- Dodaj recenzję:
- Producent: RTI
-
Dostępność:
Skontaktuj się z nami - magazyn dystrybucyjny
**** Autoryzowany dealer produktów RTI****

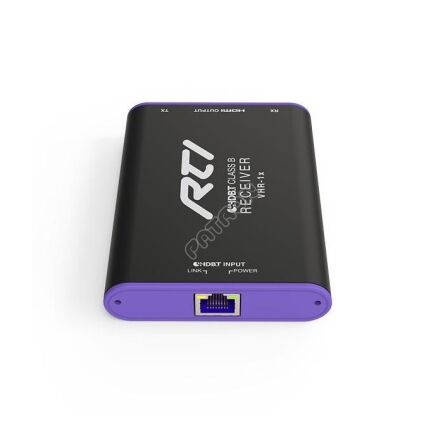

RTI VHR-1x - HDBaseT Class B Video Receiver
Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:
- audiowizualnych
- Digital Signage
- wideokonferencyjnych i telekonferencyjnych
- sterowania (integracyjnych).
- Produkt w magazynie specjalistycznym
- Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
- tel. 56 657 57 65
- tel. 500 227 464
- The VHR-1x HDBaseT Receiver receives an HDMI video signal over a single Cat5e cable or greater from a VHT-1x HDBaseT Transmitter or from a VHD-4x/8x HDBaseT Video Matrix Switcher. VHR-1x is powered through the connected Cat cable using PoH (Power over HDbaseT). It also receives an IR control signal through the same Cat cable and delivers it to the connected display or projector.
- VHR-1x is also available as set with the VHT-1x transmitter.
- Important Note: Available in select markets. Please contact your local RTI representative for availability.
Key Features:
- Extends HDMI video 1080p up to 230ft (70m) and 4K up to 131ft (40m) over a single Cat5e cable or greater
- HDMI-CEC Bi-Directional Control
- Bi-Directional IR Control
- Power supply included (transmitter)
- PoH Power over HDBaseT (receiver)
- Wall mountable (brackets sold seperately)
- HDCP 2.2 compliant
- Automatic EDID support
- Low Profile
- Full HDMI Audio support
Specyfikacja:
| Power Supply | powered via Power over HDBaseT (PoH) |
| Power Consumption | 5.5W |
| Wall Mountable | Yes - brackets sold separately |
| Dimensions HxWxD | 0.7in(18mm) x 3.22in(82mm) x 4.52in(115mm) |
| Weight | 0.31 lbs (140g) |
| Operating Temperature | 0 to +40°C / +32 to +104°F |
| Operating Humidity | 5% to 90% Non-condensing |
| Video Input | One HDBAseT Class B (PoH) (RJ45) |
| Video Output | One HDMI |
| HDBaseT Transmission Distance | 1080P@60Hz ≤ 230ft (70m) 4K@30Hz ≤ 131ft (40m) |
| HDBaseT Recommended Cable | Cat5e or greater |
| Color Supported | 4K: 8bit, 1080p: 12bit |
| Color Depth | Up to 36bit (3x 12bit) |
| TMDS Clock Speed | 340MHz |
| Max. Bandwidth | 10.2Gbps |
| Compliance | HDCP 1.4 and HDCP 2.2 |
| PoH | PoH (Power over HDBaseT) from Transmitter |
| IR Control | One IR In, One IR Out, 3.5mm jacks, compatible with industry standard IR repeaters and receivers |
| CEC Control | Full |
| Warranty | Three Years (Parts & Labor) |
All features and specifications subject to change without notice.
Urządzenie objęte gwarancją, realizowaną w systemie door-to-door przez autoryzowany centralny serwis
