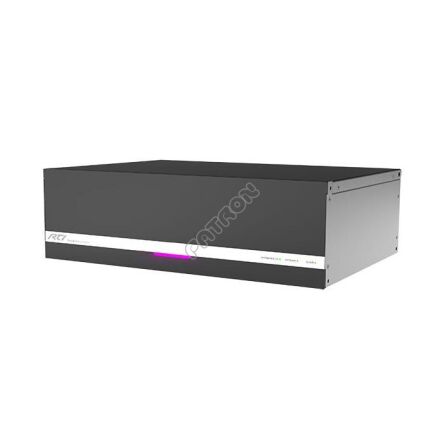

RTI VHU-8x - 8x10 HDBaseT Class C Video & Audio Matrix Switcher

Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

Introducing the VHU-8x 8x10 Matrix Switch, the flagship HDBaseT solution from RTI. The powerhouse matrix switch delivers ultra-high resolution video with pristine image quality over long distances with no latency. The VHU-8x features eight HDMI inputs, eight HDBaseT Class C + DSC outputs and two HDMI outputs with cross-point switching from any input to any output. High resolution video can be delivered up to 492ft (150m) and a 4K signal up to 328ft (100m) using Display Stream Compression.
The VHU-8x is loaded with installer-friendly features to simplify setup and enable ongoing support. The matrix utilizes auto-discovery and a webbased interface for fast and convenient configuration of connected devices. In addition, a suite of diagnostics capabilities, including built-in cable quality testing and remote monitoring, ensure a successful installation and quick troubleshooting.

The VHU-8x includes:

VHU-8x Matrix Switcher
8x VHT-URx HDBaseT Class C + DSC Receivers
8x Infrared Blaster Cable Pack
Rack Ears
Power Cord
Installation Guide
Important Note: Available in select markets. Please contact your local RTI representative for availability.

Key Features:

8 HDMI inputs.
8 HDBaseT Class C + DSC outputs, plus 2 HDMI outputs (Independent or mirrored).
Supports HDR and 4K@60Hz 4:4:4 and 1080p@60Hz, 3D.
Visually lossless compression with DSC (Display Stream Compression).
Extends 1080p up to 492 feet (150 meters) and 4K up to 328 feet (100 meters) over a single Cat5e cable or greater.
IP Control.
HDMI-CEC Bi-Directional Control.
Bi-Directional IR Control through HDBaseT.
Bi-Directional RS-232 Control through HDBaseT.
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission.
Supports PoH (Power over HDBaseT) to power receivers.
Rack mountable.
HDCP 2.2 compliant.
Automatic EDID support.
Web based management and remote monitoring support.
Kit Includes: VHU-8x Chassis | 8x VHT-URx HDBaseT Class C + DSC Receivers | 8x Infrared Blaster Cable Pack | Rack Ears | Power Cord - Power Supply

Specyfikacja:

Power Supply	IEC C14 Inlet - 100-240V 4.0/2.0A 50/60Hz
Power Consumption	Max 2Amps @ 240V
Mounting	Rack mount or free standing
Dimensions HxWxD	5.2in(132mm) x 17.3in(440mm) x 12.4in(316mm) (3U high, full rack width)
Weight	10.6lbs (4.83kg)
Operating Temperature	0 to +35 °C / +32 to +95°F
Operating Humidity	5% to 90% Non-condensing
Video Inputs	Eight HDMI
Video Outputs	Two HDMI, Eight HDBaseT Class B + DSC (PoH) (RJ45). Eight VXT-URx PoH Receivers included
Resolution Range	Up to 4K @60Hz 4:4:4
HDBaseT Transmission Distance	1080P@60Hz ≤ 492ft (150m) 4K@60Hz ≤ 328ft (100m)
Color Supported	4K: 12bit, 1080p: 12bit
TMDS Clock Speed	600Mhz
Max. Bandwidth	18Gbps
Compliance	HDCP 1.4, HDCP 2.2
IR Control	Eight IR In, Ten IR Out, One Global IR In/Out, 3.5mm jacks
RS-232 Control	Eight RS232 Bi-directional (3-Pin Phoenix Connector)
IP Control	One, 10/100Base-T, RJ45 Connection
CEC Control	Full
Monitoring	Real Time Remote Monitoring Portal
Warranty	Three Years (Parts & Labor)

All features and specifications subject to change without notice.
