RTI VMX-32 - salony w Katowicach i Toruniu zapraszają - kupuj u najlepszych!

Dodaj recenzję:

Producent: RTI
Dostępność: Skontaktuj się z nami - magazyn dystrybucyjny

**** Autoryzowany dealer produktów RTI ****

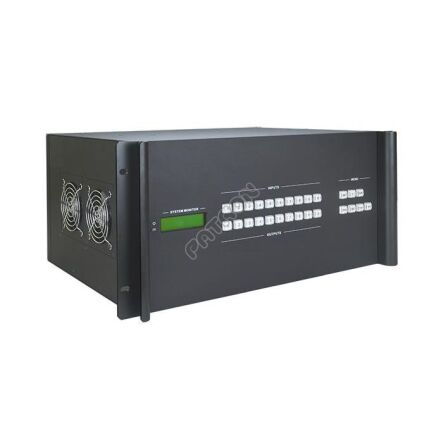

RTI VMX-32 - 32x32 Modular Video Matrix Chassis

Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

audiowizualnych
Digital Signage
wideokonferencyjnych i telekonferencyjnych
sterowania (integracyjnych).

Produkt w magazynie specjalistycznym
Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
tel. 56 657 57 65
tel. 500 227 464

The VMX-32 is a high-performance modular matrix switch chassis for professional distribution of up to 32 video sources to 32 displays. The video format of the inputs and outputs can be customized to the exact needs of a project by utilizing the range of optional I/O cards for configurations.

The VMX-32 enables cross-point switching from any input to any output and supports high resolution video output up to 4K. The HDBaseT output cards deliver HDMI video over a Cat5e/Cat6 cable to an HDBaseT receiver up to 130 feet (40 meters) away.

With its flexible design, VMX-32 is the perfect solution for signal switching and distribution in commercial multimedia applications, such as conference rooms, control rooms, hotels, or retail spaces.

Key Features:

Provides routing of up to 32 video sources to 32 displays / projectors.
Optional input cards for HDMI, HDBaseT, DVI, VGA or SDI available.
Optional output cards for HDMI, HDBaseT or VGA available
HDCP 1.2 or 1.4 compliant, supporting HDMI 1.3/1.4*.
Powerful EDID management.
HDBaseT outputs transmit a 1080p video signal up to 230 feet (70m) or 4Kx2K up to 130ft (40m) over a Cat5E/6 cable.*
Supports multiple control methods, including front panel, RS232, and TCP/IP.
LCD indicator shows connection status, switching status, HDCP status, and output resolution.
Easy installation with rack-mount design.
Redundant power supply.
Easy installation with rack-mount design.

*Key features and specifications subject to modules selected

Specyfikacja:

AC Input Voltage	110VAC ~ 230VAC (switchable), 220 Watts
Mounting	Rack mount, 5 RU
Front Panel Control	27 Buttons for Input/Output Select and Menu
RS-232 Control Port	One, Bi-directional Female DB-9
Ethernet Control Port	One, 10/100 BaseT, RJ45 Connection
Card Slots	Eight Input, Eight Output
Operating Temperature	C -10 to +40 degrees F +14 to +104 degrees
Operating Humidity	5% to 95% Non-condensing
Dimensions WxHxD	19.0" (483mm) x 5.23" (133mm) x 12.59" (320mm)
Weight	11.0lb (5.0kg)
Warranty	Three Years (Parts & Labor)

Available Input / Output Cards (Sold separately):

VMX-IM1 4-Channel HDMI 1080p Input Card

Video Input	Four, HDMI
Compliance	HDMI 1.3, HDCP 1.2
Max. Input Resolution	1080p
Analog Audio Input	Four, 3-pin Phoenix Stereo Connector

VMX-IM4 4-Channel HDMI 4K Input Card

Video Input	Four, HDMI
Compliance	HDMI 1.4, HDCP 1.4
Max. Input Resolution	4Kx2K @30Hz
Analog Audio Input	Four, 3-pin Phoenix Stereo Connector

VMX-IT1 4-Channel HDBaseT 1080p Input Card

Video Input	Four, HDBaseT (RJ45)
Compliance	HDMI 1.3, HDCP 1.2
Max. Input Resolution	1080p
Analog Audio Input	Four, 3.5mm Stereo Jack
RS-232 Input	Four, 3-pin Phoenix Connector
HDBaseT Transmission Distance	1080P ≤ 230ft (70m)

VMX-IT4 4-Channel HDBaseT 4K Input Card

Video Input	Four, HDBaseT (RJ45)
Compliance	HDMI 1.4, HDCP 1.4
Max. Input Resolution	4Kx2K @ 30Hz
Analog Audio Input	Four, 3.5mm Stereo Jack
RS-232 Input	Four, 3-pin Phoenix Connector
HDBaseT Transmission Distance	1080P ≤ 230ft (70m) 4Kx2K ≤ 131ft (40m)

VMX-ID1 4-Channel DVI 1080p Input Card

Video Input	Four, DVI
Compliance	HDMI 1.3, HDCP 1.2
Max. Input Resolution	1080p

VMX-IS1 4-Channel SDI 1080p Input Card

Video Input	Four, SDI (Female BNC)
Video Loop Out	Four, SDI (Female BNC)
Compliance	3G-SDI
Max. Input / Output Resolution	1080p

VMX-IV1 4-Channel VGA Input Card

Video Input	Four, VGA (Female 15-pin HD)
Max. Input Resolution	1080p
Analog Audio Input	Four, 3-pin Phoenix Stereo Connector

VMX-OM1 4-Channel HDMI 1080p Output Card

Video Output	Four, HDMI
Compliance	HDMI 1.3, HDCP 1.2
Max. Output Resolution	1080p
Analog Audio Output	Four, 3-pin Phoenix Stereo Connector

VMX-OM4 4-Channel HDMI 4K Output Card

Video Output	Four, HDMI
Compliance	HDMI 1.4, HDCP 1.4
Max. Output Resolution	4Kx2K @30Hz
Analog Audio Output	Four, 3-pin Phoenix Stereo Connector

VMX-OT1 4-Channel HDBaseT 1080p Output Card

Video Output	Four, HDBaseT (RJ45)
Compliance	HDMI 1.3, HDCP 1.2
Max. Output Resolution	1080p
Analog Audio Output	Four, 3.5mm Stereo Jack
RS-232 Output	Four, 3-pin Phoenix Connector
HDBaseT Transmission Distance	1080P ≤ 230ft (70m)

VMX-OT4 4-Channel HDBaseT 4K Output Card

Video Output	Four, HDBaseT (RJ45)
Compliance	HDMI 1.4, HDCP 1.4
Max. Output Resolution	4Kx2K @ 30Hz
Analog Audio Output	Four, 3.5mm Stereo Jack
RS-232 Output	Four, 3-pin Phoenix Connector
HDBaseT Transmission Distance	1080P ≤ 230ft (70m) 4Kx2K ≤ 131ft (40m)

VMX-OV1 4-Channel VGA Output Card

Video Output	Four, VGA (Female 15-pin HD)
Max. Output Resolution	1080p
Analog Audio Output	Four, 3-pin Phoenix Stereo Connector

All features and specifications subject to change without notice.

Urządzenie objęte gwarancją, realizowaną w systemie door-to-door przez autoryzowany centralny serwis
