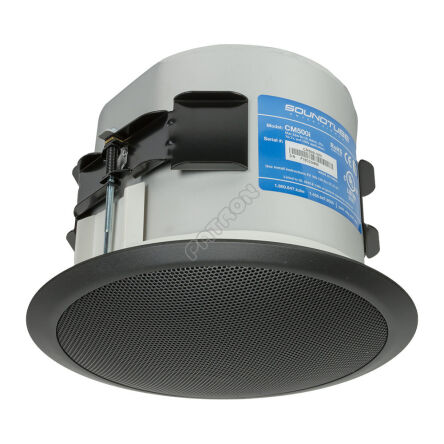

SoundTube CM500 i
Patented BroadBeam® waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. One 5.25 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. Rapid-installation, blind-mount, fixed- wing mounting mechanism with constant-tension design affixing to ceiling thicknesses ranging from 0.25 inch (6.4 mm) to 1.91 inch (48.5 mm). Easy-access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting. Steel grille with protective powder-coated finish for lasting durability. Average sensitivity of 86.5 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved. Included accessories: Tile bridge, conduit plate, Euroblock connector and paint mask.
Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:
audiowizualnych
Digital Signage
wideokonferencyjnych i telekonferencyjnych
sterowania (integracyjnych).
Produkt w magazynie dystrybucyjnym
Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
tel. 56 657 57 65
tel. 500 227 464
Specyfikacja:
| Nominal Impedance | 8 ohm |
| Impedance (min) | 4.7 ohm |
| Sensitivity dB @ 2.83V/1M | 86.5dB |
| Sensitivity dB @ 1W/1M (2) | 86.5dB |
| Frequency Response (± 3 dB) | 75 Hz - 22 kHz |
| Frequency Response (±10 dB) | 55 Hz - 22 kHz |
| Max. Program Power | 150W |
| Max. Continuous Power RMS | 75W |
| Max. Power SPL @ 1 M | 105.5dB |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4.8 (Average from 100 Hz - 10 kHz) 9.5 (2 kHz) |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 6.1dB (Average from 100 Hz - 10 kHz) 9.8dB (2 kHz) |
| Tap Selector | 6 Position rotary switch with transformer bypass |
| 70.7 Volt Transformer Taps | 33w / 101.5dB |
| 100 Volt Transformer Taps (dB) | 33w / 101.5dB |
| 25 Volt Transformer Taps (dB) | 5w / 93.5dB |
| Transformer Options | 25 / 70.7 / 100 Volt 8 Ohm direct |
| Transducer - Low Frequency Driver | 5.25" Polypropylene Cone w/ Butyl Rubber Surround |
| Transducer - High Frequency Driver | 1" Convex Titanium Tweeter w/ Waveguide |
| Network Type: Low Pass | 12dB per octave, 2nd order |
| Network Type: High Pass | 12dB per octave, 2nd order |
| Angle | 95 |
| Coverage Angle (-6 dB @ 2 kHz) | 95 |
| Colors | Black or white |
| Inputs | 4 Pin, 5.08 mm Euroblock for individual or daisy chain connection |
| Backcan Diameter | 219.2 mm / 8.6 in |
| Backcan Height | 196.9 mm / 7.75 in |
| Visible Diameter | 272 mm / 10.7 in |
| Visible Height | 24.4 mm / 0.96 in |
| Mounting Hole Diameter | 228.6 mm / 9.0 in |
| Weight | 3.4 kg / 7.5 lb |
| Shipping Weight | 10.7 kg / 23.6 lb |
| Accessories Optional | AC-CM5-PCB, |
| Packaging | 2 per box |
| Regulatory - UL | Approved UL1480A & UL2043 |
| Regulatory - CE | Approved |
| Regulatory - RoHS | approved |
| Regulatory - IP | not planned |
