SoundTube CM52s BGM - salony w Katowicach i Toruniu zapraszają - profesjonalne systemy audiowizualne
- Dodaj recenzję:
- Producent: SOUNDTUBE
-
Dostępność:
Skontaktuj się z nami - magazyn dystrybucyjny
**** Autoryzowany dealer produktów SOUNDTUBE ****

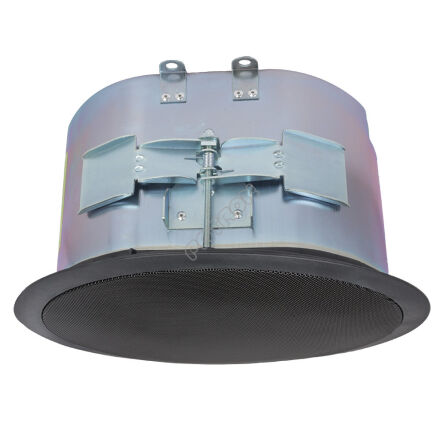

5.25″ COAXIAL IN-CEILING BACKGROUND MUSIC SHALLOW BACKCAN SPEAKER
Engineered for applications with limited plenum space incorporating a SoundTube-specific shallow backcan with an installed depth of 3.5 inches. One 5.25 inch (134 mm) polypropylene woofer with rubber surround and one 0.75 inch (19 mm) silk dome tweeter. BroadBeam Ring™ technology for mid-range clarity and smooth off axis performance. Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation. Tuned port on baffle for added musicality and bass response down to 65 Hz (-10 dB). Reduced amplification costs and maximum efficiency of 84.5 dB sensitivity, 16 ohm impedance. Incorporates a painted steel grille for lasting durability. Adaptable to material thicknesses ranging from 0.035 inch (0.9 mm) to 1.6 inch (40.6 mm). UL 1480 and 2043 listed. Included accessories: Color-coded (orange) tile bridge, UL listed 0.5 inch conduit clamp, paint shield.
Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:
audiowizualnych
Digital Signage
wideokonferencyjnych i telekonferencyjnych
sterowania (integracyjnych).
Produkt w magazynie dystrybucyjnym
Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
tel. 56 657 57 65
tel. 500 227 464
Specyfikacja:
| Nominal Impedance | 16 ohm |
| Impedance (min) | 16 ohm |
| Sensitivity dB @ 2.83V/1M | 79.1dB |
| Sensitivity dB @ 1W/1M (2) | 82.0dB |
| Frequency Response (± 3 dB) | 90 Hz - 20 kHz |
| Frequency Response (±10 dB) | 65 Hz - 22 kHz |
| Max. Program Power | 40W |
| Max. Continuous Power RMS | 20W |
| Max. Power SPL @ 1 M | 98.0 dB |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 3.2 (Averaged 100 Hz - 10 kHz) 2.1 (2 kHz) |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.0dB (Averaged 100 Hz - 10 kHz) 3.3dB (2 kHz) |
| Tap Selector | 6 Position rotary switch with transformer bypass |
| 70.7 Volt Transformer Taps | 20w / 95.0dB |
| 100 Volt Transformer Taps (dB) | 20w / 95.0dB |
| 25 Volt Transformer Taps (dB) | 2.5w / 86.0dB |
| Transducer - Low Frequency Driver | 5.25" Polypropylene Cone w/ Rubber Surround |
| Transducer - High Frequency Driver | 0.75″ Silk dome w/ BroadBeam Ring™ |
| Network Type: Low Pass | 12dB per octave, 2nd order |
| Network Type: High Pass | 12dB per octave, 2nd order |
| Angle | 180 |
| Coverage Angle (-6 dB @ 2 kHz) | 180 |
| Colors | Black or white |
| Inputs | 4 position ceramic terminal connector |
| Backcan Diameter | 245.6 mm / 9.7 in |
| Backcan Height | 95.3 mm / 3.75 in |
| Visible Diameter | 298.5 mm / 11.75 in |
| Visible Height | 8.6 mm / 0.34 in |
| Mounting Hole Diameter | 266.7 mm / 10.5 in |
| Weight | 3.6 kg / 8.0 lb |
| Shipping Weight | 4.1 kg / 9.0 lb |
| Accessories Optional | AC-CMEZ/8-PCB |
| Packaging | 1 per box |
| Regulatory - UL | Approved UL1480A & UL2043 |
| Regulatory - CE | Approved |
| Regulatory - RoHS | approved |
| Regulatory - IP | not planned |
