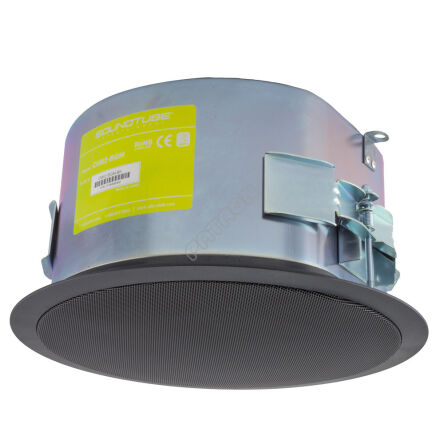

SoundTube CM62 BGM - 6.5″ COAXIAL IN-CEILING BACKGROUND MUSIC SPEAKER
One 6.5 inch (165 mm) polypropylene woofer with rubber surround and one 1.0 inch (25.4 mm) silk dome tweeter. BroadBeam Ring™ technology for mid-range clarity and smooth off axis performance. Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation. Tuned port on baffle for added musicality and bass response down to 64 Hz (-10 dB). Reduced amplification costs and maxi¬mum efficiency of 85.0 dB sensitivity, 16 ohm impedance. Incorporates a painted steel grille for last¬ing durability. Adaptable to material thicknesses ranging from 0.035 inch (0.9 mm) to 1.6 inch (40.6 mm). UL 1480, UL 2043 and EN54-24 listed. Included accessories: Tile bridge, UL listed 0.5 inch conduit clamp, paint shield.
Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:
audiowizualnych
Digital Signage
wideokonferencyjnych i telekonferencyjnych
sterowania (integracyjnych).
Produkt w magazynie dystrybucyjnym
Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
tel. 56 657 57 65
tel. 500 227 464
Specyfikacja:
| Nominal Impedance | 16 ohm |
| Impedance (min) | 16.0 ohm |
| Sensitivity dB @ 2.83V/1M | 81.4dB |
| Sensitivity dB @ 1W/1M (2) | 84.5dB |
| Frequency Response (± 3 dB) | 54 Hz - 20 kHz |
| Frequency Response (±10 dB) | 50 Hz - 22 kHz |
| Max. Program Power | 100W |
| Max. Continuous Power RMS | 50W |
| Max. Power SPL @ 1 M | 101.5dB |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 5.9 (Average 100Hz - 2 kHz) 8 (2 kHz) |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 4.9dB (Average 100Hz - 2 kHz) 6.3dB (2 kHz) |
| Tap Selector | 6 Position rotary switch with transformer bypass |
| 70.7 Volt Transformer Taps | 32w / 99.5dB |
| 100 Volt Transformer Taps (dB) | 32w / 99.5dB |
| 25 Volt Transformer Taps (dB) | 4w / 90.5dB |
| Transducer - Low Frequency Driver | 6.5" Polypropylene Cone w/ Rubber Surround |
| Transducer - High Frequency Driver | 1″ Silk dome w/ BroadBeam Ring™ |
| Network Type: Low Pass | 12dB per octave, 2nd order |
| Network Type: High Pass | 6dB per octave, 1st order |
| Angle | 115 |
| Coverage Angle (-6 dB @ 2 kHz) | 115 |
| Colors | Black or white |
| Inputs | 4 position ceramic terminal connector |
| Backcan Diameter | 245.6 mm / 9.7 in |
| Backcan Height | 146.1 mm / 5.8 in |
| Visible Diameter | 298.5 mm / 11.8 in |
| Visible Height | 8.6 mm / 0.34 in |
| Mounting Hole Diameter | 266.7 mm / 10.5 in |
| Weight | 3.6 kg / 7.9 lb |
| Shipping Weight | 4.1 kg / 9.0 lb |
| Accessories Optional | AC-CMEZ6/8-PCB |
| Packaging | 1 per box |
| Regulatory - UL | Approved UL1480A & UL2043 |
| Regulatory - CE | Approved |
| Regulatory - RoHS | approved |
| Regulatory - IP | not planned |
