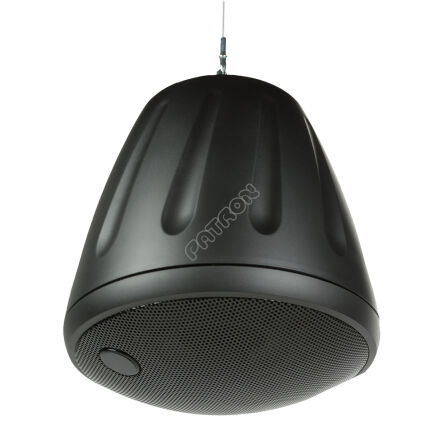

SoundTube HP 590 i -5.25” High Power Coaxial Open-Ceiling Speaker

Patented BroadBeamHP® waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. One 5.25 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with a 90º waveguide mounted to a proprietary cast-aluminum baffle and heat sink. Weatherized components for indoor and outdoor applications. Average sensitivity of 87.5 dB offers high output capabilities and reduced amplification costs. Patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity. Easy-access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Includes hanging hardware with galvanized steel cables and integrated SpeedClamp™ self-locking wire grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot. UL 2239 (hanging cable) approved.

Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

• audiowizualnych
• Digital Signage
• wideokonferencyjnych i telekonferencyjnych
• sterowania (integracyjnych).

• Produkt w magazynie dystrybucyjnym
• Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
• tel. 56 657 57 65
• tel. 500 227 464

• Nominal Impedance	8 ohm
  Impedance (min)	4.2 ohm
  Sensitivity dB @ 2.83V/1M	87.5dB
  Sensitivity dB @ 1W/1M (2)	87.5dB
  Frequency Response (± 3 dB)	95 Hz - 22 kHz
  Frequency Response (±10 dB)	69 Hz - 22 kHz
  Max. Program Power	160W
  Max. Continuous Power RMS	80W
  Max. Power SPL @ 1 M	106.5dB
  Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)	5.5 (Averaged 100 Hz - 10 kHz) 9.1 (2 kHz)
  Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)	5.7dB (Averaged 100 Hz - 10 kHz) 9.6dB (2 kHz)
  Tap Selector	6 Position rotary switch with transformer bypass
  70.7 Volt Transformer Taps	33w / 102.5dB
  100 Volt Transformer Taps (dB)	33w / 102.5dB
  25 Volt Transformer Taps (dB)	5w / 94.5dB
  Transformer Options	25 / 70.7 / 100 Volt option with a 8 Ohm direct
  Transducer - Low Frequency Driver	5.25" Polypropylene Cone w/ Butyl Rubber Surround
  Transducer - High Frequency Driver	1" Convex Titanium Tweeter w/ Tractrix Profile Horn
  Network Type: High Pass	12dB per octave, 2nd order
  Angle	90
  Coverage Angle (-6 dB @ 2 kHz)	90
  Colors	Black or white
  Inputs	4 Pin, 5.08 mm Euroblock for individual or daisy chain connection
  Height (SM = Height)	298.2 mm / 11.7 in
  Diameter (SM = Width)	245.9 mm / 9.7 in
  Weight	4.3 kg / 9.5 lb
  Shipping Weight	10 kg / 22.0 lb
  Accessories Optional	Surface-Mount Bracket (AC-RS-SM5), Beam Clamp (AC-BC-1), Split Loom Tubing (AC-SLT-10), Hanging Kit (AC-RS-HH-10), Hanging Kit (AC-RS-HH-20), Hanging Kit (AC-RS-HH-50), Forged Eyebolt (AC-FE1), Snap Link (AC-SL-1)
  Packaging	2 per box
  Regulatory - UL	not planned
  Regulatory - CE	Approved
  Regulatory - IP	not planned
