SoundTube RS 600 i - salony w Katowicach i Toruniu zapraszają - profesjonalne systemy audiowizualne

  • Dodaj recenzję:
  • Producent: SOUNDTUBE
  • Dostępność: Skontaktuj się z nami - magazyn dystrybucyjny

**** Autoryzowany dealer produktów SOUNDTUBE ****

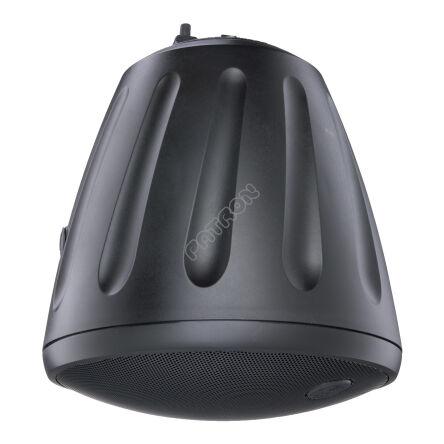

SoundTube RS 600 i - 6.5″ Coaxial Open-Ceiling Speaker



One 6.5 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. Includes UL-listed hanging hardware with galvanized steel cables and integrated SpeedClamp™ self-locking cable grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot. Patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity. Easy access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position simplifies ordering and inventory tracking. Steel grille with protective powder-coated finish for lasting durability. Average sensitivity of 88.5 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY), 2239 (hanging cable) and Mil-Spec 810 approved.

Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

  • audiowizualnych
  • Digital Signage
  • wideokonferencyjnych i telekonferencyjnych
  • sterowania (integracyjnych).



  • Produkt w magazynie dystrybucyjnym
  • Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
  • tel. 56 657 57 65
  • tel. 500 227 464

Specyfikacja:

  • Nominal Impedance 8 ohm
    Impedance (min) 4.8 ohm
    Sensitivity dB @ 2.83V/1M 88.5dB
    Sensitivity dB @ 1W/1M (2) 88.5dB
    Frequency Response (± 3 dB) 85 Hz - 17 kHz
    Frequency Response (±10 dB) 58 Hz – 22 kHz
    Max. Program Power 180W
    Max. Continuous Power RMS 90W
    Max. Power SPL @ 1 M 108.0dB
    Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 4.7 (Average 100 Hz - 10 kHz) 7.9 (2 kHz)
    Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 5.7dB (Average 100 Hz - 10 kHz) 9.0dB (2 kHz)
    Tap Selector 6 Position rotary switch with transformer bypass
    70.7 Volt Transformer Taps 33w / 103.5dB
    100 Volt Transformer Taps (dB) 33w / 103.5dB
    25 Volt Transformer Taps (dB) 5w / 95.5dB
    Transformer Options 25 / 70.7 / 100 Volt with voice coil / 8 Ohm direct
    Transducer - Low Frequency Driver 6.5" Polypropylene Cone with Butyl Rubber Surround
    Transducer - High Frequency Driver 1" Convex Titanium Tweeter w/ Waveguide
    Network Type: Low Pass 12dB per octave, 2nd order
    Network Type: High Pass 12dB per octave, 2nd order
    Angle 100
    Coverage Angle (-6 dB @ 2 kHz) 100
    Colors Black or white
    Inputs 4 Pin, 5.08 mm Euroblock for individual or daisy chain connection
    Height (SM = Height) 363.5 mm / 14.3 in
    Diameter (SM = Width) 307.3 mm / 12.1 in
    Weight 6.1 kg / 13.4 lb
    Shipping Weight 7.5 kg / 16.5 lb
    Accessories Optional Surface-Mount Bracket (AC-RS-SM6), Beam Clamp (AC-BC-1), Split Loom Tubing (AC-SLT-10), Hanging Kit (AC-RS-HH-10), Hanging Kit (AC-RS-HH-20), Hanging Kit (AC-RS-HH-50), Forged Eyebolt (AC-FE1), Snap Link (AC-SL-1)
    Packaging 1 per box
    Regulatory - UL Approved UL1480A
    Regulatory - CE Approved
    Regulatory - RoHS approved
    Regulatory - IP not planned

Urządzenie objęte gwarancją, realizowaną w systemie door-to-door przez autoryzowany centralny serwis
