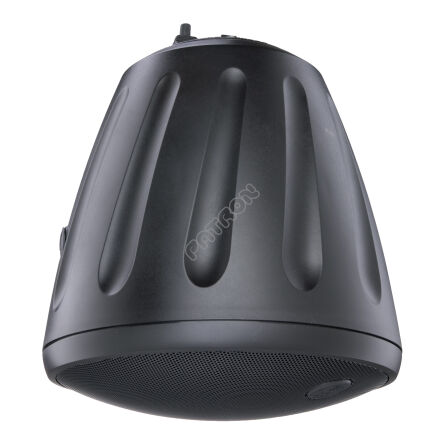

SoundTube RS 800 i  - 8″ Coaxial Open-Ceiling Speaker

One 8.0 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. Includes UL listed hanging hardware with galvanized steel cables and integrated SpeedClamp™ self-locking cable grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot. Patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity. Easy access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position simplifies ordering and inventory tracking. Steel grille with protective powder-coated finish for lasting durability. Average sensitivity of 89.5 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY), 2239 (hanging cable) and Milspec 810 approved.

Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

• audiowizualnych
• Digital Signage
• wideokonferencyjnych i telekonferencyjnych
• sterowania (integracyjnych).

• Produkt w magazynie dystrybucyjnym
• Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
• tel. 56 657 57 65
• tel. 500 227 464
•

• Nominal Impedance	8 ohm
  Impedance (min)	5.3 ohm
  Sensitivity dB @ 2.83V/1M	89.5dB
  Sensitivity dB @ 1W/1M (2)	89.5dB
  Frequency Response (± 3 dB)	80 Hz - 22 kHz
  Frequency Response (±10 dB)	58 Hz – 22 kHz
  Max. Program Power	250W
  Max. Continuous Power RMS	125W
  Max. Power SPL @ 1 M	110.5dB
  Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)	4.7 (Average 100 Hz - 10 kHz) 5.5 (2 kHz)
  Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)	5.8dB (Average 100 Hz - 10 kHz) 7.4dB (2 kHz)
  Tap Selector	6 Position rotary switch with transformer bypass
  70.7 Volt Transformer Taps	66w / 107.5dB
  100 Volt Transformer Taps (dB)	66w / 107.5dB
  25 Volt Transformer Taps (dB)	9w / 99.0dB
  Transformer Options	25 / 70.7 / 100 Volt with voice coil / 8 Ohm direct
  Transducer - Low Frequency Driver	8" Polypropylene Cone w/ Butyl Rubber Surround
  Transducer - High Frequency Driver	1 in / 25 mm Convex Aluminum w/ BroadBeam® Waveguide
  Network Type: Low Pass	12dB per octave, 2nd order
  Network Type: High Pass	12dB per octave, 2nd order
  Angle	100
  Coverage Angle (-6 dB @ 2 kHz)	100
  Colors	Black or white
  Inputs	4 Pin, 5.08 mm Euroblock for individual or daisy chain connection
  Height (SM = Height)	437.6 mm / 17.2 in
  Diameter (SM = Width)	376.4 mm / 14.8 in
  Weight	9.3 kg / 20.5 lb
  Shipping Weight	11.6 kg / 25.6 lb
  Accessories Optional	Surface-Mount Bracket (AC-RS-SM8), Split Loom Tubing (AC-SLT-10), Hanging Kit (AC-RS-HH-10), Hanging Kit (AC-RS-HH-20), Hanging Kit (AC-RS-HH-50), Forged Eyebolt (AC-FE1), Snap Link (AC-SL-1)
  Packaging	1 per box
  Regulatory - UL	Approved UL1480A
  Regulatory - CE	Approved
  Regulatory - RoHS	approved
  Regulatory - IP	not planned
