SoundTube SA202 - salony w Katowicach i Toruniu zapraszają - profesjonalne systemy audiowizualne

  • Dodaj recenzję:
  • Producent: SOUNDTUBE
  • Dostępność: Skontaktuj się z nami - magazyn dystrybucyjny

**** Autoryzowany dealer produktów SOUNDTUBE ****

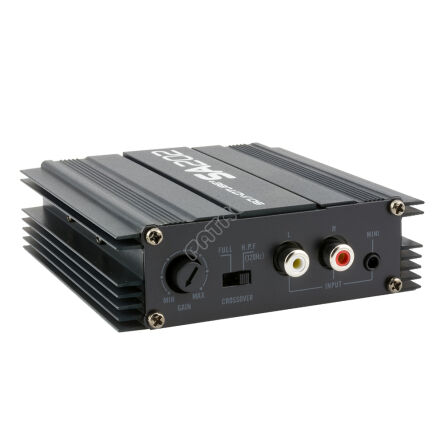

SoundTube SA202 - 20-WATT PER CHANNEL CLASS AB MINI AMPLIFIER - CYFROWY Wzmacniacz instalacyjny stereo / moc: 2 x 10 W przy 8 ohm lub 2 x 20 W przy ohm / TRIGGER 12 V / obudowa aluminiowa / wymiary: 124 x 101 x 32 mm / waga: 0,25 kg

35 dB maximum gain with 2 x 20 watt output at 4 Ohms. Dual RCA, stereo mini jack and high-level inputs. High pass filter at 120 Hz to reduce bass distortion in smaller speakers. Aluminum housing with integrated heat sink. Power inputs include either three-pin Euroblock or barrel connector. 12-volt trigger for automatic on/off functions when source power is detected. Included accessory: universal pole- and surface-mount adapter. Designed for the FP series speakers.



Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

audiowizualnych

Digital Signage

wideokonferencyjnych i telekonferencyjnych

sterowania (integracyjnych).



Produkt w magazynie dystrybucyjnym

Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności

tel. 56 657 57 65

tel. 500 227 464



Specyfikacja:

Input Impedance 6 k ohms
Frequency Response (± 3 dB) 20 Hz–20 kHz (+/- .1 dB)
Max Gain 35 dB
Power per Channel @ < 10 % THD 20 watts (4 ohm stereo) 10 watts (8 ohm stereo)
Signal to Noise Ratio 92 dB (100 Hz, 12 dB/oct, 4 ohm, A-Weighted)
Port length 123.6 mm (4.86 in.) including connectors
Height (SM = Height) 31.2 mm / 1.23 in
Diameter (SM = Width) 101.1 mm / 3.98 in
SM Depth (Including Bracket) 123.6 mm / 4.86 in
Weight .59 kg w/ Power Supply, .25 kg w/o / 1.3 lbs w/ Power Supply, .55 lbs w/o
Shipping Weight .7 kg w/ Power Supply, .34 kg w/o / 1.55 lbs w/ Power Supply, .75 lbs w/o
Packaging One per box
Regulatory - RoHS approved

Urządzenie objęte gwarancją, realizowaną w systemie door-to-door przez autoryzowany centralny serwis
