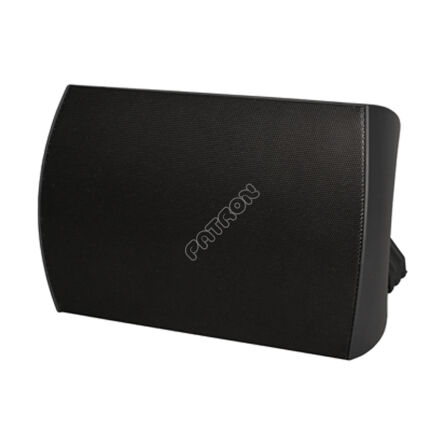

SoundTube SM52EZ- 5.25″ PREMIUM FULL-RANGE SURFACE-MOUNT SPEAKER
The SM52-EZ is a cost-conscious, durable, surface-mount loudspeaker. One 5.25 inch polypropylene woofer and one 1.0 inch soft dome tweeteride. 32-watt low-insertion loss transformer with maximum output. Easy-access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Powder-coated aluminum grille. Included pre-mountable surface-mount bracket allows for quick and easy division of labor. UL 1480 (UEAY) approved, EN52-24 Pending. Included accessories: Safety cable, wall mount bracket and conduit connector.
Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:
audiowizualnych
Digital Signage
wideokonferencyjnych i telekonferencyjnych
sterowania (integracyjnych).
Produkt w magazynie dystrybucyjnym
Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
tel. 56 657 57 65
tel. 500 227 464
Specyfikacja:
| Nominal Impedance | 8 ohm |
| Impedance (min) | 8 ohm |
| Sensitivity dB @ 2.83V/1M | 84.0dB |
| Sensitivity dB @ 1W/1M (2) | 84.0dB |
| Frequency Response (± 3 dB) | 65 Hz - 20 kHz |
| Frequency Response (±10 dB) | 55 Hz – 22 kHz |
| Max. Program Power | 100W |
| Max. Continuous Power RMS | 50W |
| Max. Power SPL @ 1 M | 101 dB |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 6.9 (Average 100 Hz - 10 kHz) 5.9 (2 kHz) |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.2dB (Average 100 Hz - 10 kHz) 7.7dB (2 kHz) |
| Tap Selector | 6 Position rotary switch with transformer bypass |
| 70.7 Volt Transformer Taps | 32W / 99dB |
| 100 Volt Transformer Taps (dB) | 32W / 99dB |
| 25 Volt Transformer Taps (dB) | 4W / 90dB |
| Transformer Options | 25 / 70.7 / 100 Volt option, with an 8 Ohm bypass |
| Transducer - Low Frequency Driver | 5.25" Polypropylene Cone w/ Butyl Rubber Surround |
| Transducer - High Frequency Driver | 1″ Silk dome w/ BroadBeam Ring™ |
| Network Type: Low Pass | 12dB per octave, 2nd order |
| Network Type: High Pass | 12dB per octave, 2nd order |
| Coverage Angle (-6 dB @ 2 kHz) | 91 horizontal 120 vertical |
| Colors | Black or white |
| Inputs | 4 Pin, Ceramic terminal strip for daisy chain connection |
| Height (SM = Height) | 301.8 mm / 11.9 in |
| Diameter (SM = Width) | 190.5 mm / 7.5 in |
| SM Depth (Including Bracket) | 168.4 mm / 6.6 in |
| Weight | 4.3 kg / 9.5 lb |
| Shipping Weight | 4.5 kg / 9.8 lb |
| Packaging | 1 per box |
| Owner's Manual - color | Download Owners Manual |
| Tech Sheet | Array |
| Regulatory - UL | planned UL1480A |
| Regulatory - CE | Approved |
| Regulatory - IP | IP65 |
| Regulatory - EN54 | Planned |
Urządzenie objęte gwarancją, realizowaną w systemie door-to-door przez autoryzowany centralny serwis
