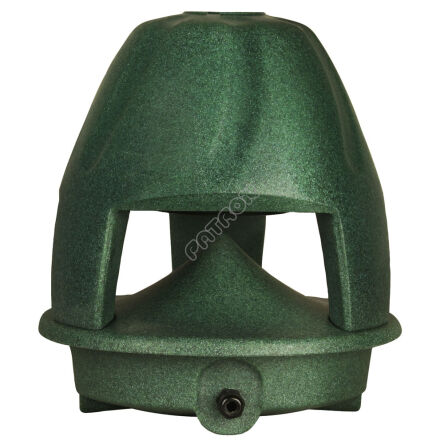

SoundTube XT 550 GN -XT550

Patented BroadBeam® waveguide technology provides smooth 360º horizontal off-axis coverage and reduces overall system costs. One 5.25 in weatherproof polypropylene woofer with butyl rubber surround and one 1″ aluminum dome tweeter with integrated horn & mounting bracket. UV-, scratch-, chlorine- and weather- resistant with professional-grade components for long-lasting performance and durability. Patented, durable and weather sealed Zero Reflection™ enclosure with optional port vent for added frequency response. Weather-proof 5-position tap switch for 25-, 70.7-, 100 Volt applications with transformer bypass position. 32 Watt transformer included. Liquid-tight compression fittings for water-tight protection. Multiple wire inlet locations for fast and easy daisy chaining. Stainless steel fasteners, stainless steel & powder-coated grille. UL 1480 (UEAY) listed.

Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

• audiowizualnych
• Digital Signage
• wideokonferencyjnych i telekonferencyjnych
• sterowania (integracyjnych).

• Produkt w magazynie dystrybucyjnym
• Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
• tel. 56 657 57 65
• tel. 500 227 464

• Nominal Impedance	4 Ohms
  Impedance (min)	4 Ohms
  Sensitivity dB @ 2.83V/1M	86.0 dB
  Sensitivity dB @ 1W/1M (2)	83.0 dB
  Frequency Response (± 3 dB)	61 Hz – 9.5 kHz port open (101 Hz – 12 kHz port closed)
  Frequency Response (±10 dB)	49 Hz – 22 kHz port open (62 Hz – 22 kHz port closed)
  Max. Program Power	120 Watts
  Max. Continuous Power RMS	60 Watts
  Max. Power SPL @ 1 M	101 dB
  Tap Selector	5 Position rotary switch with transformer bypass
  70.7 Volt Transformer Taps	32W / 98.0 dB
  100 Volt Transformer Taps (dB)	32W / 98.0 dB
  25 Volt Transformer Taps (dB)	4W / 89.0 dB
  Transformer Options	25 / 70.7 / 100 Volt option with a 4 Ohm direct
  Transducer - Low Frequency Driver	5.25" Polypropylene Cone w/ Butyl Rubber Surround
  Transducer - High Frequency Driver	1" Convex Aluminum Tweeter
  Network Type: Low Pass	6dB per octave, 1st order
  Network Type: High Pass	6dB per octave, 1st order
  Coverage Angle (-6 dB @ 2 kHz)	360 horizontal 40 vertical
  Colors	Granite green or sandstone
  Connections	18-Gauge wire lead
  Inputs	18 gauge wire lead
  Height (SM = Height)	394 mm / 15.51 in
  Diameter (SM = Width)	358.1 mm / 14.1 in
  Weight	5.9 kG / 13.0 lbs
  Shipping Weight	8.6 kG / 19.0 lbs
  Packaging	One per box
  Regulatory - UL	1480A Approved
  Regulatory - CE	approved
  Regulatory - IP	ip55_approved
