WorkPro PA 240 USB/R - salony w Katowicach i Toruniu zapraszają - profesjonalne systemy audiowizualne

**** Autoryzowany dealer produktów WORKPRO ****

WorkPro PA 240 USB/R - Wzmacniacz miksujący 100 V – moc: 240 W RMS – odtwarzacz MP3 – rejestrator audio – wejście USB – 4 wej mic + 4 line + 2 aux – 4 STREFY

Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

• audiowizualnych
• Digital Signage
• wideokonferencyjnych i telekonferencyjnych
• sterowania (integracyjnych).

• Produkt w magazynie dystrybucyjnym
• Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
• tel. 56 657 57 65
• tel. 500 227 464

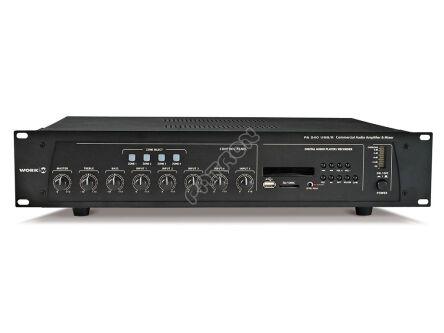

Mixing amplifier with audio player/recorder

PA 240 USB/R is the most powerful model of the PA USB/R series.

This powerful installed sound power amplifier delivers 240 W output power and can supply up to 4 different zones with its many input sources.

It includes a solid state audio player/recorder (USB/SD) suitable with standard formats (MP3, etc.). It makes possible for a lecturer to record its speetchs and save them in a USB storage device. It is also possible to record voice messages (in a shopping centre for example) and store them. PA 240 USB/R supports USB and SD storage devices with up to 32 GB memory.

PA 240 USB/Rfeatures 5 input sources: 4 selectable Mic/Line, 1 Aux/CD/Tuner/Tape. The mixer includes functions like independent volume control, Master control, high/bass tone, etc. It also has a Pre-out to send mixed signal to an external amplified system or to connect external devices like equalizers and processors.

Designed for installed sound system installations, PA 240 USB/R is suitable with low impedance speakers (4, 8 and 16 ohm) and high voltage lines (25/70/100 V). Its amplified monitor output results very useful to control audio from a same place.

In addition, for maximum safety in the whole installation, it includes a Chime On/Off switch and a Tel/Emer connection for emergency announcements.

Installed sound power amplifier + 5 input mixer with 4 selectable zones.
Solid state audio player/recorder (USB/SD) with standard formats (MP3, WMA).
Supports storage devices with up to 32 GB.
4 Mic inputs +4 Line inputs.
1 Aux/CD/Tuner/Tape input.
Monitor output.
Mixer with independent control of volume, Master control and high/bass tone.
Pre-out function.
Suitable with low impedance speakers (4, 8 and 16 ohm) and high voltage line (25/70/100 V).
Chime On/Off switch.
Tel/Emer connection for emergency announcements.
2U rack enclosure.

Specyfikacja:

• Output power (RMS): 240 W.
• Output power (Peak): 300 W.
• Audio inputs: 4 Mic/Line, 1 LINE (Aux/CD/Tuner/Tape) level.
• USB/SD interface: MP3/WMA formats.
• Mic inputs (impedance/sensitivity): 600 ohm / 2.7 mV bal. / -49.15 dBu.
• Line (impedance/sensitivity): 47 kohm / 100 mV./ -17.78 dBu.
• Aux (impedance/sensitivity): 20 kohm / 100 mV./ -17.78 dBu.
• CD (impedance/sensitivity): 47 kohm / 570 mV./ -2.66 dBu.
• Tuner (impedance/sensitivity): 56 kohm / 300 mV./ -8.23 dBu.
• Tape (impedance/sensitivity): 1 kohm / 1 V./ 2.21 dBu.
• Zone outputs: 4 zones: 100 V (ONLY).
• Monitor output: 8 ohm / 1 W.
• Pre-out: 600 ohm / 1 V
• Frequency response: 30 Hz - 20 kHz +/- 3 dB.
• EQ controls Bass: +/- 10 dB / Treble: +/- 10 dB.
• S/N ratio: > 80 dB (Line) / > 60 dB (Mic).
• THD: Less than 0.5% at 1kHz, rated power.
• Chime: 4 tone chime ('Ding-dong' attending signal preceding a call).
• Priority: Tel.Emer. - Input 5.
• Main supply: AC 115/230 V, 50/60 Hz.
• Consumption: 590 W.
• Dimensions (WxHxD): 483 x 88 x 335 mm.
• Weight: 13 kg.

Urządzenie objęte gwarancją, realizowaną w systemie door-to-door przez autoryzowany centralny serwis
