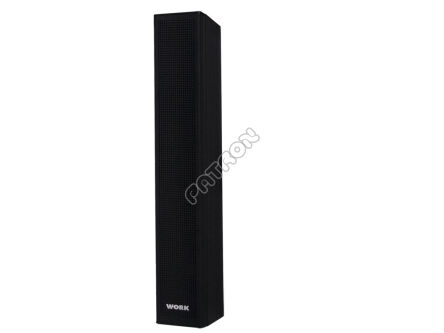

WorkPro UDA 8 - Matryca głośnikowa LINE ARRAY - wymiary: 573 x 105 x 112 mm / 8 głośników 2,75 cala / pasmo: 100 – 20kHz / moc: 200 W 8 ohm – kolor biały lub czarny

Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

• audiowizualnych
• Digital Signage
• wideokonferencyjnych i telekonferencyjnych
• sterowania (integracyjnych).

• Produkt w magazynie dystrybucyjnym
• Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
• tel. 56 657 57 65
• tel. 500 227 464

Array Column

The UDA 8 column, which belongs to the UDA Series array system from WORK PRO, is a new concept of modular column. Thanks to its specifically system of filters and its 16 transducers, this join allows to keep a tight and constant dispersion in most of its wide frequency response. Its vertical dispersion control means to decrease possible architectural acoustics problems, allowing to sound complex rooms with possible sound problems.

The UDA devices focus most of the energy in the main lobe on the audience coverage, preventing uncontrolled beams that generate unwanted reflections which create an increase in the reverberation, which makes difficult the intelligibility. Moreover, its special design allows to reproduce a highly directional vertical coverage and to achieve cylindrical sound waves. The traditional sources present 6 dB drops when the distance between the source and the listener is doubled, while the directivity control can reduce this loss in 3 dB as the UDA 8 & UDA 16 don?t disperse the energy in the vertical axis.

Line Array column with uniform vertical dispersion control.
Uniform dispersion array (constant frequency response).
Cylindrical waveform (Line Array effect).
Perfect intelligibility.
Suitable for outdoor and indoor applications.
Modular stackable design.
Elegant and compact design.
70/100V transformer (optional).
Black and white colour available.

Specyfikacja:

UDA 8

• Elements: 8x 2.75'' full range speakers

• RMS power (1): 200 W (40V rms)

• Program power (2): 400 W

• Peak powe (3): 800 W (80V peak)

• 70V/100V transformer(UDA 16 TL): 60 W

• Sensitivity (SPL@1m): 90dB SPL

• Peak SPL (4): 119dB

• Frequency response (5) (-10dB): 150 Hz - 23 kHz

• Frequency response (5) (-6dB): 170 Hz - 20 kHz

• Horizontal coverage (-6dB): 140º

• Vertical coverage (-6dB): 20º

• Nominal Impedance: 8 ohm

• Recommended HPF: 100 Hz, Butterworth 24dB/Oct

• Connectors: Terminals and XNL 4

• Colour: Black (RAL9011) and White (RAL9016)

• IP rating: IP 65

• Mounting system: Real rail

• Enclosure Aluminium trapezoid shape

• Dimensions (WxHxD): 105 x 571 x 112 mm

• Weight 5,1 kg

• Accessories: Wall 16 (included) - Sub 16/2, SPK 16/2 (Optional)

(1) Based on a 2h power test run with pink noise, 6 dB crest factor, IEC filtered.
(2) Conventionally, 3dB higher than RMS power
(3) Corresponds to the crest factor for the test described in (1)
(4) Calculated based on Peak Power and sensitivity
(5) Free field

Urządzenie objęte gwarancją, realizowaną w systemie door-to-door przez autoryzowany centralny serwis
